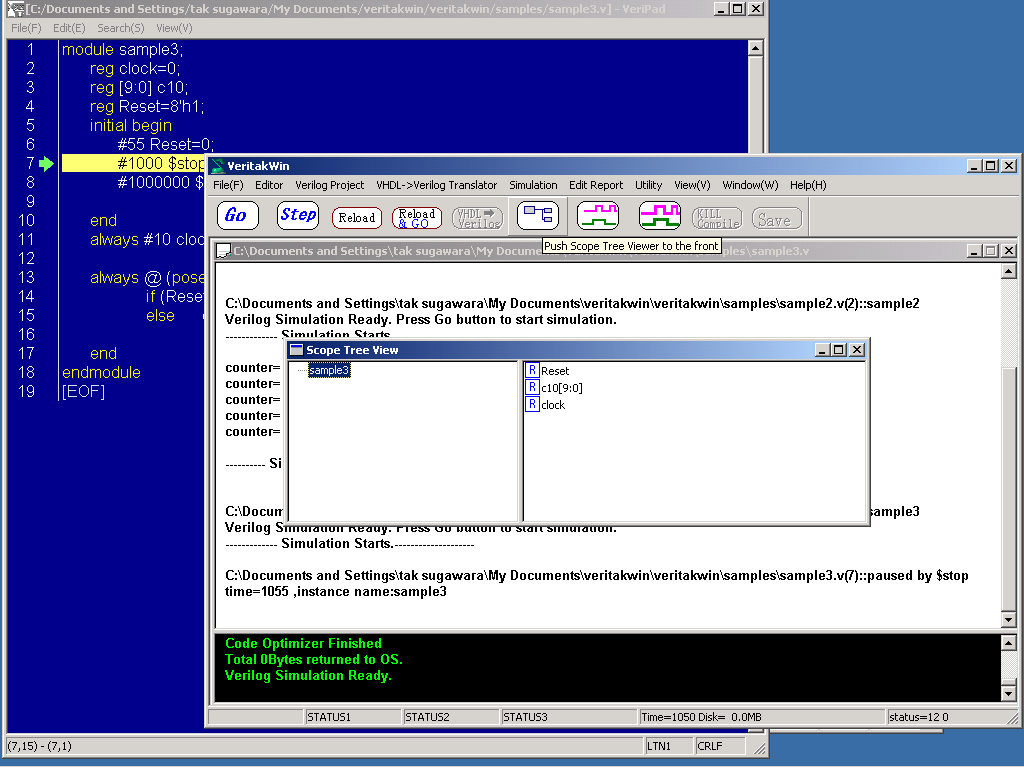

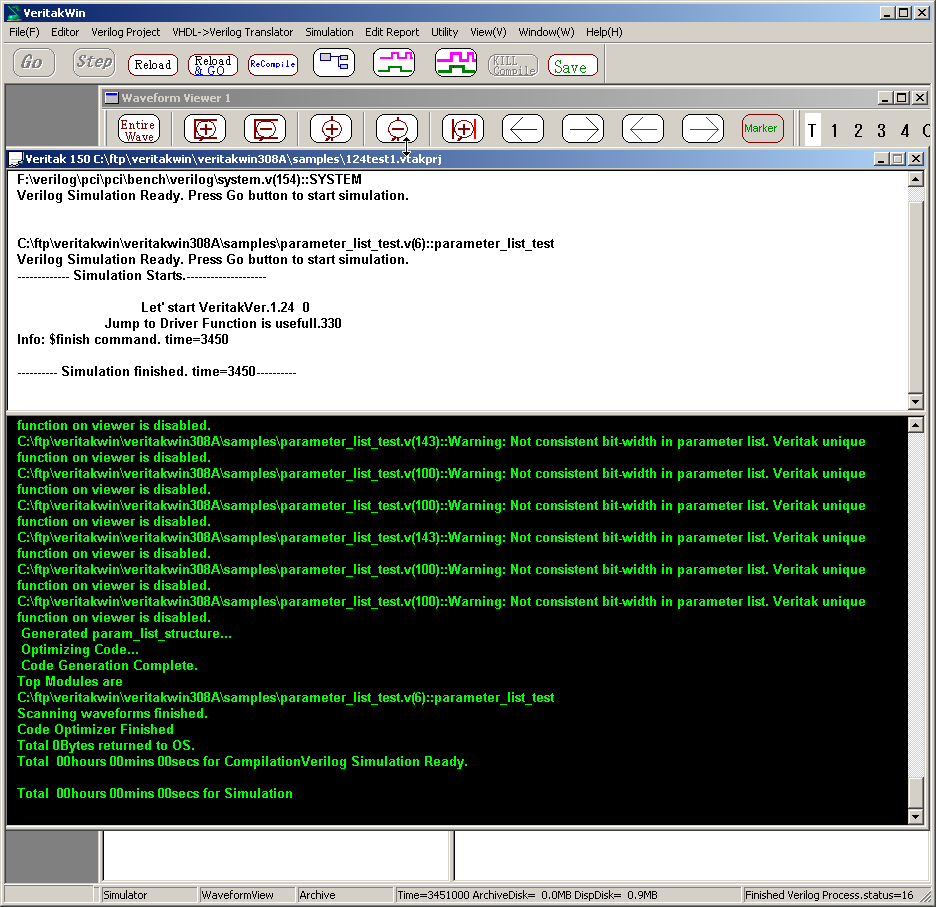

Open "sample3.v" and Press Go button.
Simulation will be paused by $stop command in line 7.
Pushing Scope Tree View  makes scope-tree view to the front as below.

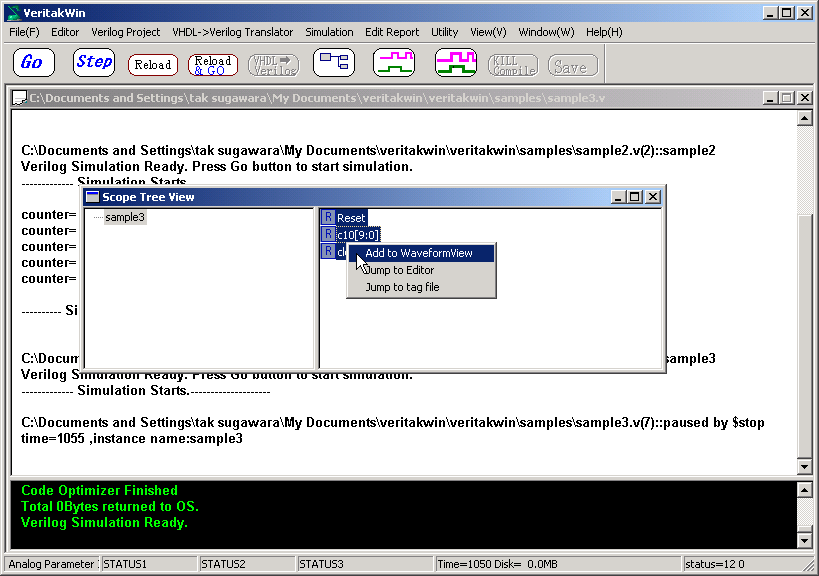

Select all signals on Scope TreeView
Right-click,and  Add to WaveformView

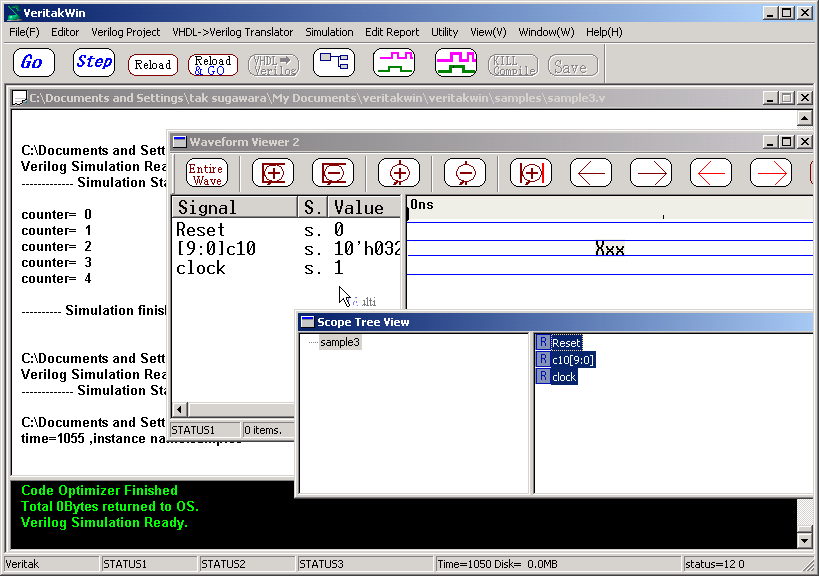

You can add signals by Drag&Drop as well

Note: Press ESC to cancell D&D.

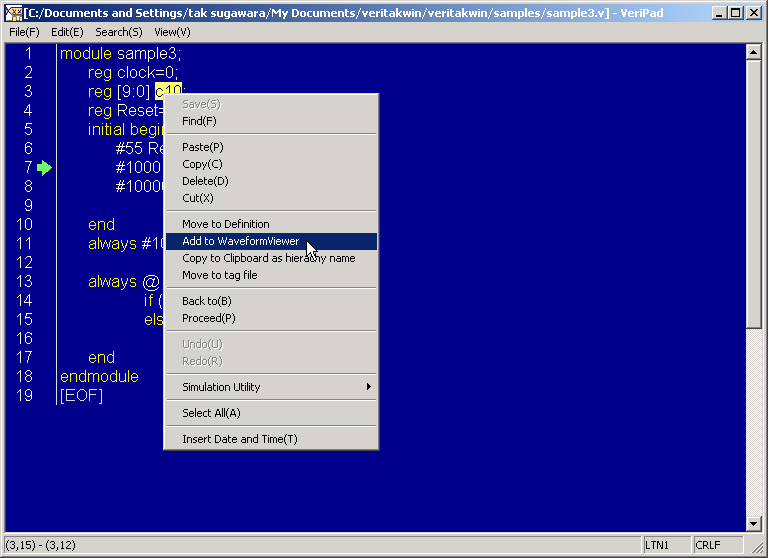

You can add a signal by Veripad as well
For Example;


• Select signal (where c10)
• Right-Click
• Click Add to WaveformViewer

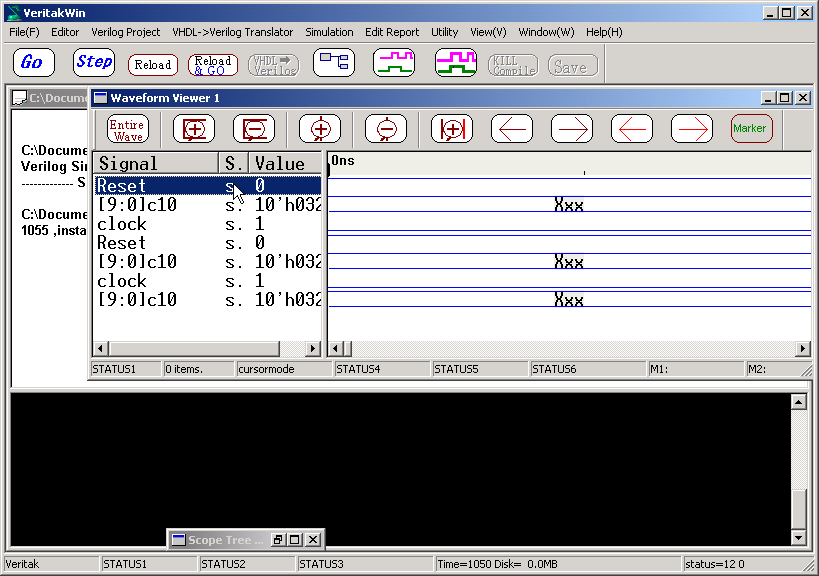

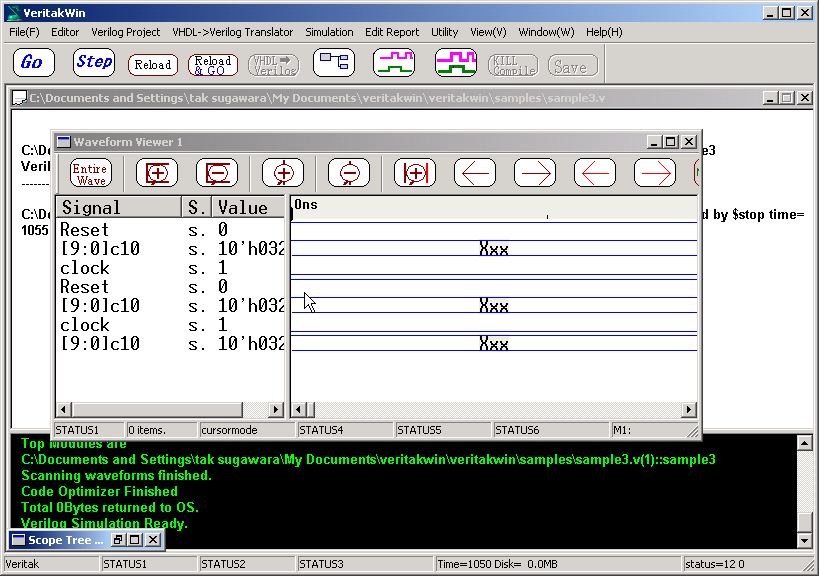

Finally, you will see following display.

Placement of Views are depending on what you like. In this tutorial, Use my favorite position..

• Menu => Windows
• Click Arrange WaveformView

Clicking Column of Scope makes scope-tree view to the front with addressed signal highlighted.

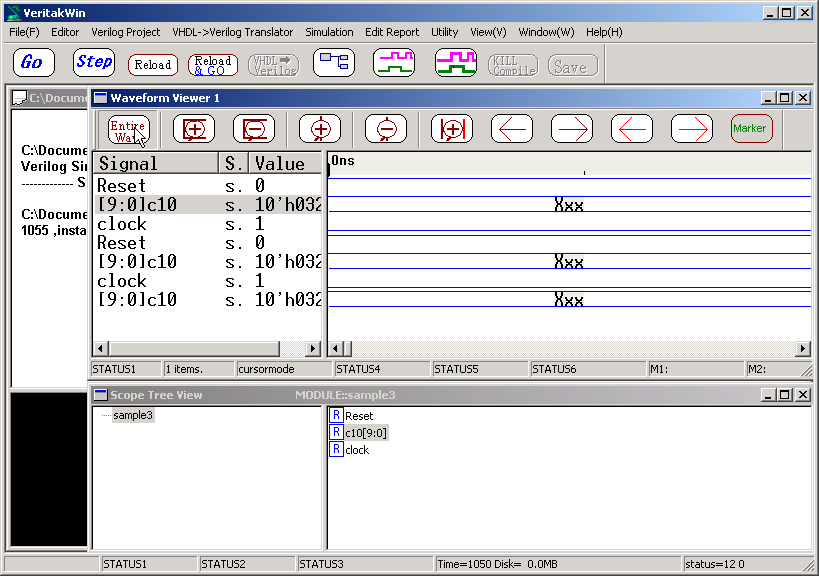

Entire Wave button enables the view from time 0 to current simulation time.

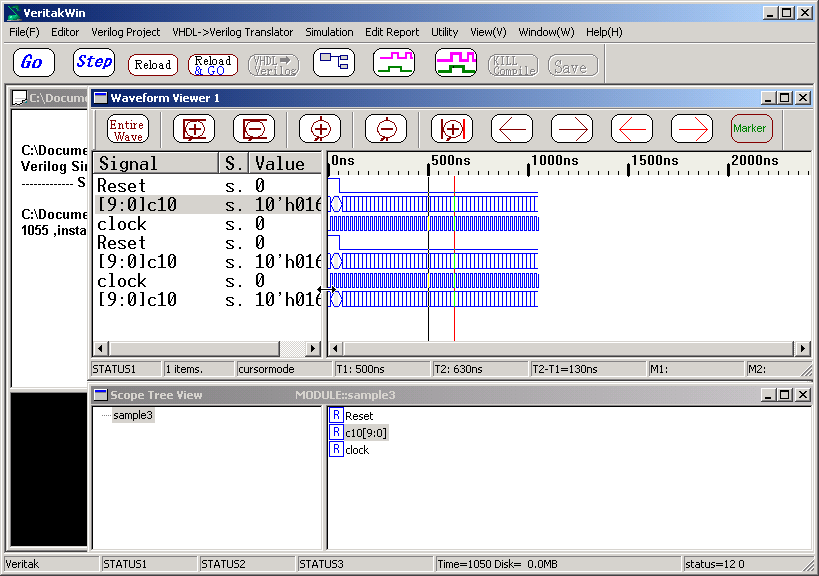

Two cursors(T1,T2) are available. Cursor operation is as follows.

Use "|+|" button to zoom portions between T1-T2.

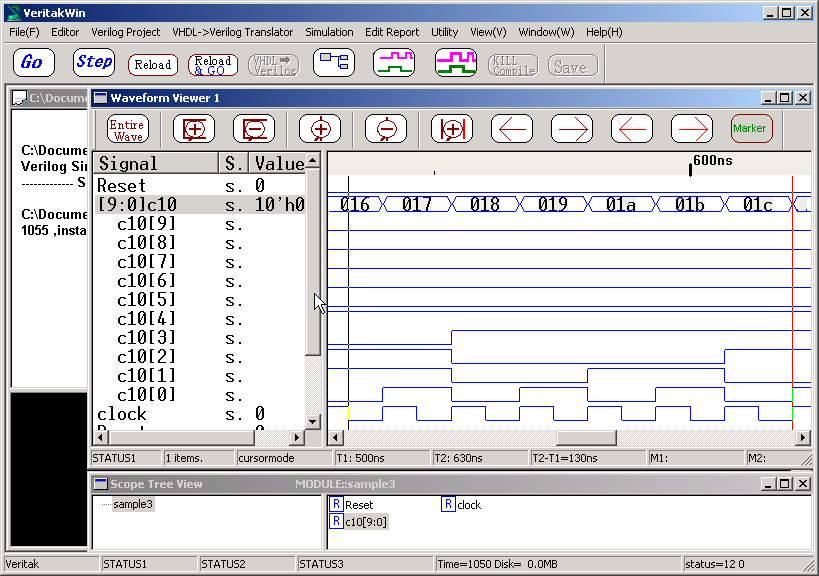

Double-click the signal to expand vector to bits.
In figure below,"c10" is double-clicked, and arranged using Arrange WaveformViews
Double-click vector signal again to fold expanded bits.

Note:

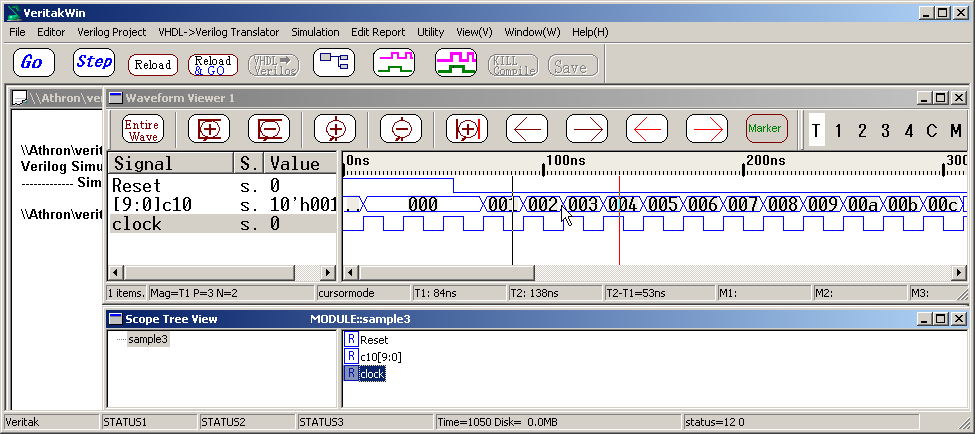

• CTRL + Mouse-wheel  changes timescale. F1 Key toggles T1->T2->Mouse->Marker->Center　displayed at Status Bar2. (Ex. Mag=T1 in Figure below.) Scaling Factor is about 20% while Tool Bar's is 2-5 times. CTRL+Mouse-wheel may be used for fine tuning. In Mouse operation mode Zoom In/Out is at current x position , while at center position in view per other modes. If you like Mouse mode as default, please check Zoom In/Out at Mouse Cursor in project settings. (Please note this setting makes meaningless +- button in tool bar.)

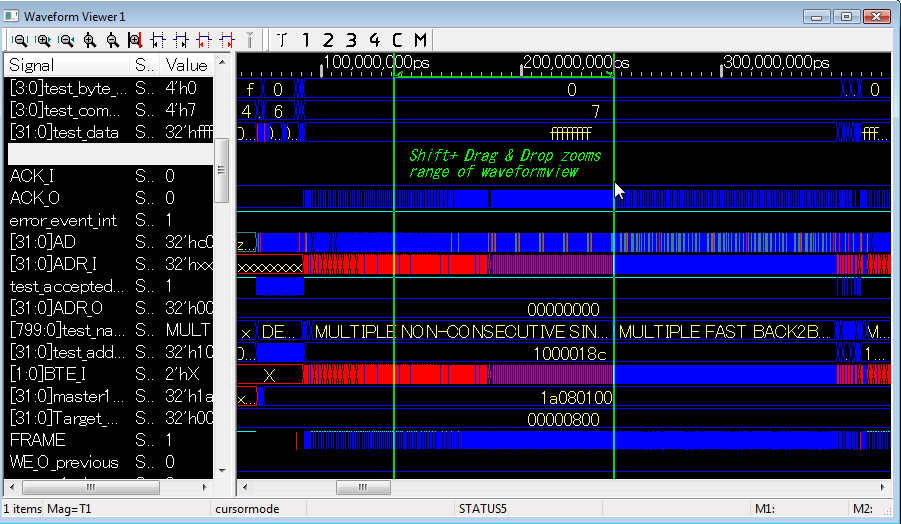

• SHIFT + Drag& Drop zooms in range of waveformview.
• SHIFT + Right Click zooms out for center portion (SHIFT + Right Dbl-Click makes wider)
• ALT + Mouse-wheel changes vertical position( Only when Vertical Scroll Bar is available)
• Right Double-click at Title bar of WaveformView to change unit of T1/T2 cursor time.
• Shift +Left Click makes clip-board copy of text on waveformview
• Key- operations are as follows. For other short cut operations, please refer to tool tip display.

  KEY	Operation
  HOME	Go to Top Line
  END	Go to Bottom Line
  PAGE UP	1 Page Up
  PAGE DOWN	1 Page Down
  UP	1 Line Up
  DOWN	1 Line Down
  LEFT	1 Page Scroll
  RIGHT	1 Page Scroll
  INSERT/"E"	Insert blank row line
  DEL/"D"	Delete selected lines
  "C"	Copy Selected lines
  "V"	Paste Copied lines

<How to move from View to View>

Use Ctrl-Tab. It is recommended you use following configuration of view.
Clicking title-bar makes highlighting the view
