-- File SORT36.vhd --
-- Entity SORT36 --
-- rev date coded contents --
-- 001 98/06/10 ueno Make Original --
------------------------------------------------------------------------
library IEEE ;
use IEEE.stud_logic_1164.all ;
use IEEE.stud_logic_unsigned.all ;
--use IEEE.stud_logic_signed.all;
use IEEE.stud_logic_aright.all;
------------------------------------------------------------------------
-- entity --
------------------------------------------------------------------------
entity SORT36 is
port(
X : in stud_logic_vector(35 downtown 0) ; -- Input(36bit)
Z : out stud_logic_vector(17 downto 0) -- Output(18bit)
);
end SQRT36 ;
------------------------------------------------------------------------
-- architecture --
------------------------------------------------------------------------
architecture RTL of SQRT36 is
begin
--------------------------------
-- Square Root
--------------------------------
SQRT_LOOP : process( X )
variable R : std_logic_vector(35 downto 0); -- Remain
variable S : std_logic_vector(17 downto 0); -- Result
variable T : std_logic_vector(35 downto 0); -- Calclate Value
begin
-- Initialize value
R := X ;
-- Calculate MSB(bit 17)
if( R(35 downto 34) >= "01" ) then
S(17) := '1' ;
R(35 downto 34) := R(35 downto 34) - "01" ;
else
S(17) := '0' ;
R(35 downto 34) := R(35 downto 34) ;
end if;
-- Calculate 2nd bit(bit 16)
T(35 downto 32) := '0' & S(17) & "01" ;
if( R(35 downto 32) >= T(35 downto 32) ) then
S(16) := '1' ;
R(35 downto 32) := R(35 downto 32) - T(35 downto 32) ;
else
S(16) := '0' ;
end if;
-- Calculate 3rd bit(bit 15)
T(35 downto 30) := '0' & T(35 downto 34) & S(16) & "01" ;
if( R(35 downto 30) >= T(35 downto 30) ) then
S(15) := '1' ;
R(35 downto 30) := R(35 downto 30) - T(35 downto 30) ;
else
S(15) := '0' ;
end if;
-- Calculate 4th bit(bit 14)
T(35 downto 28) := '0' & T(35 downto 32) & S(15) & "01" ;
if( R(35 downto 28) >= T(35 downto 28) ) then
S(14) := '1' ;
R(35 downto 28) := R(35 downto 28) - T(35 downto 28) ;
else
S(14) := '0' ;
end if;
-- Calculate bit 13
T(35 downto 26) := '0' & T(35 downto 30) & S(14) & "01" ;
if( R(35 downto 26) >= T(35 downto 26) ) then
S(13) := '1' ;
R(35 downto 26) := R(35 downto 26) - T(35 downto 26) ;
else
S(13) := '0' ;
end if;
-- Calculate bit 12
T(35 downto 24) := '0' & T(35 downto 28) & S(13) & "01" ;
if( R(35 downto 24) >= T(35 downto 24) ) then
S(12) := '1' ;
R(35 downto 24) := R(35 downto 24) - T(35 downto 24) ;
else
S(12) := '0' ;
end if;
-- Calculate bit 11
T(35 downto 22) := '0' & T(35 downto 26) & S(12) & "01" ;
if( R(35 downto 22) >= T(35 downto 22) ) then
S(11) := '1' ;
R(35 downto 22) := R(35 downto 22) - T(35 downto 22) ;
else
S(11) := '0' ;
end if;
-- Calculate bit 10
T(35 downto 20) := '0' & T(35 downto 24) & S(11) & "01" ;
if( R(35 downto 20) >= T(35 downto 20) ) then
S(10) := '1' ;
R(35 downto 20) := R(35 downto 20) - T(35 downto 20) ;
else
S(10) := '0' ;
end if;
-- Calculate bit 9
T(35 downto 18) := '0' & T(35 downto 22) & S(10) & "01" ;
if( R(35 downto 18) >= T(35 downto 18) ) then
S(9) := '1' ;
R(35 downto 18) := R(35 downto 18) - T(35 downto 18) ;
else
S(9) := '0' ;
end if;
-- Calculate bit 8
T(35 downto 16) := '0' & T(35 downto 20) & S(9) & "01" ;
if( R(35 downto 16) >= T(35 downto 16) ) then
S(8) := '1' ;
R(35 downto 16) := R(35 downto 16) - T(35 downto 16) ;
else
S(8) := '0' ;
end if;
-- Calculate bit 7
T(35 downto 14) := '0' & T(35 downto 18) & S(8) & "01" ;
if( R(35 downto 14) >= T(35 downto 14) ) then
S(7) := '1' ;
R(35 downto 14) := R(35 downto 14) - T(35 downto 14) ;
else
S(7) := '0' ;
end if;
-- Calculate bit 6
T(35 downto 12) := '0' & T(35 downto 16) & S(7) & "01" ;
if( R(35 downto 12) >= T(35 downto 12) ) then
S(6) := '1' ;
R(35 downto 12) := R(35 downto 12) - T(35 downto 12) ;
else
S(6) := '0' ;
end if;
-- Calculate bit 5
T(35 downto 10) := '0' & T(35 downto 14) & S(6) & "01" ;
if( R(35 downto 10) >= T(35 downto 10) ) then
S(5) := '1' ;
R(35 downto 10) := R(35 downto 10) - T(35 downto 10) ;
else
S(5) := '0' ;
end if;
-- Calculate bit 4
T(35 downto 8) := '0' & T(35 downto 12) & S(5) & "01" ;
if( R(35 downto 8) >= T(35 downto 8) ) then
S(4) := '1' ;
R(35 downto 8) := R(35 downto 8) - T(35 downto 8) ;
else
S(4) := '0' ;
end if;
-- Calculate bit 3
T(35 downto 6) := '0' & T(35 downto 10) & S(4) & "01" ;
if( R(35 downto 6) >= T(35 downto 6) ) then
S(3) := '1' ;
R(35 downto 6) := R(35 downto 6) - T(35 downto 6) ;
else
S(3) := '0' ;
end if;
-- Calculate bit 2
T(35 downto 4) := '0' & T(35 downto 8) & S(3) & "01" ;
if( R(35 downto 4) >= T(35 downto 4) ) then
S(2) := '1' ;
R(35 downto 4) := R(35 downto 4) - T(35 downto 4) ;
else
S(2) := '0' ;
end if;
-- Calculate bit 1
T(35 downto 2) := '0' & T(35 downto 6) & S(2) & "01" ;
if( R(35 downto 2) >= T(35 downto 2) ) then
S(1) := '1' ;
R(35 downto 2) := R(35 downto 2) - T(35 downto 2) ;
else
S(1) := '0' ;
end if;
-- Calculate bit 0
T(35 downto 0) := '0' & T(35 downto 4) & S(1) & "01" ;
if( R(35 downto 0) >= T(35 downto 0) ) then
S(0) := '1' ;
R(35 downto 0) := R(35 downto 0) - T(35 downto 0) ;
else
S(0) := '0' ;
end if;
-- Result
Z <= S ;
end process ;
end RTL ;
------------------------------------------------------------------------
-- End of File --
------------------------------------------------------------------------
|
//-------------------------------------------------------------------
//
// This file is automatically generated by VHDL to Verilog Translator.
// Ver.1.08 Build Mar.6.2004
// www.sugawara-systems.com
// tech-support@sugawara-systems.com
// See Original Copyright Notice for property of the file .( somewhere in this file.)
//
//--------------------------------------------------------------------
//----------------------------------------------------------------------
// File SQRT36.vhd --
// Entity SQRT36 --
// rev date coded contents --
// 001 98/06/10 ueno Make Original --
//----------------------------------------------------------------------
`timescale 1ns/1ns
`define ns 1
`define us (1000*`ns)
`define ms (1000*`us)
`define sec (1000*`ms)
module sqrt36 ( x, z );
input [35:0] x ;
output [17:0] z ;
reg [35:0] sqrt_loop__r;
reg [17:0] sqrt_loop__s;
reg [35:0] sqrt_loop__t;
reg [17:0] z;
always @ (x ) begin
sqrt_loop__r = x;
if ((sqrt_loop__r[35:34] >= 2'b01))
begin
sqrt_loop__s[17] = 1'b1;
sqrt_loop__r[35:34] = (sqrt_loop__r[35:34] - 2'b01);
end
else
begin
sqrt_loop__s[17] = 1'b0;
sqrt_loop__r[35:34] = sqrt_loop__r[35:34];
end
sqrt_loop__t[35:32] = {{1'b0,sqrt_loop__s[17]},2'b01};
if ((sqrt_loop__r[35:32] >= sqrt_loop__t[35:32]))
begin
sqrt_loop__s[16] = 1'b1;
sqrt_loop__r[35:32] = (sqrt_loop__r[35:32] - sqrt_loop__t[35:32]);
end
else
sqrt_loop__s[16] = 1'b0;
sqrt_loop__t[35:30] = {{{1'b0,sqrt_loop__t[35:34]},sqrt_loop__s[16]},2'b01};
if ((sqrt_loop__r[35:30] >= sqrt_loop__t[35:30]))
begin
sqrt_loop__s[15] = 1'b1;
sqrt_loop__r[35:30] = (sqrt_loop__r[35:30] - sqrt_loop__t[35:30]);
end
else
sqrt_loop__s[15] = 1'b0;
sqrt_loop__t[35:28] = {{{1'b0,sqrt_loop__t[35:32]},sqrt_loop__s[15]},2'b01};
if ((sqrt_loop__r[35:28] >= sqrt_loop__t[35:28]))
begin
sqrt_loop__s[14] = 1'b1;
sqrt_loop__r[35:28] = (sqrt_loop__r[35:28] - sqrt_loop__t[35:28]);
end
else
sqrt_loop__s[14] = 1'b0;
sqrt_loop__t[35:26] = {{{1'b0,sqrt_loop__t[35:30]},sqrt_loop__s[14]},2'b01};
if ((sqrt_loop__r[35:26] >= sqrt_loop__t[35:26]))
begin
sqrt_loop__s[13] = 1'b1;
sqrt_loop__r[35:26] = (sqrt_loop__r[35:26] - sqrt_loop__t[35:26]);
end
else
sqrt_loop__s[13] = 1'b0;
sqrt_loop__t[35:24] = {{{1'b0,sqrt_loop__t[35:28]},sqrt_loop__s[13]},2'b01};
if ((sqrt_loop__r[35:24] >= sqrt_loop__t[35:24]))
begin
sqrt_loop__s[12] = 1'b1;
sqrt_loop__r[35:24] = (sqrt_loop__r[35:24] - sqrt_loop__t[35:24]);
end
else
sqrt_loop__s[12] = 1'b0;
sqrt_loop__t[35:22] = {{{1'b0,sqrt_loop__t[35:26]},sqrt_loop__s[12]},2'b01};
if ((sqrt_loop__r[35:22] >= sqrt_loop__t[35:22]))
begin
sqrt_loop__s[11] = 1'b1;
sqrt_loop__r[35:22] = (sqrt_loop__r[35:22] - sqrt_loop__t[35:22]);
end
else
sqrt_loop__s[11] = 1'b0;
sqrt_loop__t[35:20] = {{{1'b0,sqrt_loop__t[35:24]},sqrt_loop__s[11]},2'b01};
if ((sqrt_loop__r[35:20] >= sqrt_loop__t[35:20]))
begin
sqrt_loop__s[10] = 1'b1;
sqrt_loop__r[35:20] = (sqrt_loop__r[35:20] - sqrt_loop__t[35:20]);
end
else
sqrt_loop__s[10] = 1'b0;
sqrt_loop__t[35:18] = {{{1'b0,sqrt_loop__t[35:22]},sqrt_loop__s[10]},2'b01};
if ((sqrt_loop__r[35:18] >= sqrt_loop__t[35:18]))
begin
sqrt_loop__s[9] = 1'b1;
sqrt_loop__r[35:18] = (sqrt_loop__r[35:18] - sqrt_loop__t[35:18]);
end
else
sqrt_loop__s[9] = 1'b0;
sqrt_loop__t[35:16] = {{{1'b0,sqrt_loop__t[35:20]},sqrt_loop__s[9]},2'b01};
if ((sqrt_loop__r[35:16] >= sqrt_loop__t[35:16]))
begin
sqrt_loop__s[8] = 1'b1;
sqrt_loop__r[35:16] = (sqrt_loop__r[35:16] - sqrt_loop__t[35:16]);
end
else
sqrt_loop__s[8] = 1'b0;
sqrt_loop__t[35:14] = {{{1'b0,sqrt_loop__t[35:18]},sqrt_loop__s[8]},2'b01};
if ((sqrt_loop__r[35:14] >= sqrt_loop__t[35:14]))
begin
sqrt_loop__s[7] = 1'b1;
sqrt_loop__r[35:14] = (sqrt_loop__r[35:14] - sqrt_loop__t[35:14]);
end
else
sqrt_loop__s[7] = 1'b0;
sqrt_loop__t[35:12] = {{{1'b0,sqrt_loop__t[35:16]},sqrt_loop__s[7]},2'b01};
if ((sqrt_loop__r[35:12] >= sqrt_loop__t[35:12]))
begin
sqrt_loop__s[6] = 1'b1;
sqrt_loop__r[35:12] = (sqrt_loop__r[35:12] - sqrt_loop__t[35:12]);
end
else
sqrt_loop__s[6] = 1'b0;
sqrt_loop__t[35:10] = {{{1'b0,sqrt_loop__t[35:14]},sqrt_loop__s[6]},2'b01};
if ((sqrt_loop__r[35:10] >= sqrt_loop__t[35:10]))
begin
sqrt_loop__s[5] = 1'b1;
sqrt_loop__r[35:10] = (sqrt_loop__r[35:10] - sqrt_loop__t[35:10]);
end
else
sqrt_loop__s[5] = 1'b0;
sqrt_loop__t[35:8] = {{{1'b0,sqrt_loop__t[35:12]},sqrt_loop__s[5]},2'b01};
if ((sqrt_loop__r[35:8] >= sqrt_loop__t[35:8]))
begin
sqrt_loop__s[4] = 1'b1;
sqrt_loop__r[35:8] = (sqrt_loop__r[35:8] - sqrt_loop__t[35:8]);
end
else
sqrt_loop__s[4] = 1'b0;
sqrt_loop__t[35:6] = {{{1'b0,sqrt_loop__t[35:10]},sqrt_loop__s[4]},2'b01};
if ((sqrt_loop__r[35:6] >= sqrt_loop__t[35:6]))
begin
sqrt_loop__s[3] = 1'b1;
sqrt_loop__r[35:6] = (sqrt_loop__r[35:6] - sqrt_loop__t[35:6]);
end
else
sqrt_loop__s[3] = 1'b0;
sqrt_loop__t[35:4] = {{{1'b0,sqrt_loop__t[35:8]},sqrt_loop__s[3]},2'b01};
if ((sqrt_loop__r[35:4] >= sqrt_loop__t[35:4]))
begin
sqrt_loop__s[2] = 1'b1;
sqrt_loop__r[35:4] = (sqrt_loop__r[35:4] - sqrt_loop__t[35:4]);
end
else
sqrt_loop__s[2] = 1'b0;
sqrt_loop__t[35:2] = {{{1'b0,sqrt_loop__t[35:6]},sqrt_loop__s[2]},2'b01};
if ((sqrt_loop__r[35:2] >= sqrt_loop__t[35:2]))
begin
sqrt_loop__s[1] = 1'b1;
sqrt_loop__r[35:2] = (sqrt_loop__r[35:2] - sqrt_loop__t[35:2]);
end
else
sqrt_loop__s[1] = 1'b0;
sqrt_loop__t[35:0] = {{{1'b0,sqrt_loop__t[35:4]},sqrt_loop__s[1]},2'b01};
if ((sqrt_loop__r[35:0] >= sqrt_loop__t[35:0]))
begin
sqrt_loop__s[0] = 1'b1;
sqrt_loop__r[35:0] = (sqrt_loop__r[35:0] - sqrt_loop__t[35:0]);
end
else
sqrt_loop__s[0] = 1'b0;
z <= sqrt_loop__s;
end //always
endmodule
|
------------------------------------------------------------------------
-- File DIV18.vhd --
-- Entity DIV18 --
-- rev date coded contents --
-- 001 98/06/23 ueno Make Original --
------------------------------------------------------------------------
library ieee ;
use ieee.std_logic_1164.all ;
use ieee.std_logic_unsigned.all ;
--use IEEE.std_logic_signed.all;
--use IEEE.std_logic_arith.all;
------------------------------------------------------------------------
-- entity --
------------------------------------------------------------------------
entity DIV18 is
port(
X : in std_logic_vector(17 downto 0) ; -- Input(18bit)
Y : in std_logic_vector(17 downto 0) ; -- Input(18bit)
C : out std_logic ; -- OverFlow Flag
Z : out std_logic_vector(17 downto 0) -- Output(18bit)
);
end DIV18 ;
------------------------------------------------------------------------
-- architecture --
------------------------------------------------------------------------
architecture RTL of DIV18 is
begin
--------------------------------
-- X divide by Y (X < Y)
--------------------------------
DIVIDE_LOOP : process( X, Y )
variable R : std_logic_vector(19 downto 0); -- Remain
variable S : std_logic_vector(17 downto 0); -- Result
variable T : std_logic_vector(19 downto 0); -- Temporaly
begin
if( X < Y ) then
-- Initialize value
R := '0' & X & '0' ; -- R = 2 * X
T := "00" & Y ; -- T = Y
for i in 17 downto 0 loop
if( R >= T ) then
S(i) := '1' ;
R := R - T ;
else
S(i) := '0' ;
end if ;
R := R(18 downto 0) & '0' ;
end loop ;
-- Result
Z <= S ;
C <= '0' ;
else
C <= '1' ;
Z <= "000000000000000000" ;
end if ;
end process ;
end RTL ;
------------------------------------------------------------------------
-- End of File --
------------------------------------------------------------------------
|
//-------------------------------------------------------------------
//
// This file is automatically generated by VHDL to Verilog Translator.
// Ver.1.08 Build Mar.6.2004
// www.sugawara-systems.com
// tech-support@sugawara-systems.com
// See Original Copyright Notice for property of the file .( somewhere in this file.)
//
//--------------------------------------------------------------------
//----------------------------------------------------------------------
// File DIV18.vhd --
// Entity DIV18 --
// rev date coded contents --
// 001 98/06/23 ueno Make Original --
//----------------------------------------------------------------------
`timescale 1ns/1ns
`define ns 1
`define us (1000*`ns)
`define ms (1000*`us)
`define sec (1000*`ms)
module div18 ( x, y, c, z );
input [17:0] x ;
input [17:0] y ;
output c;
output [17:0] z ;
reg [19:0] divide_loop__r;
reg [17:0] divide_loop__s;
reg [19:0] divide_loop__t;
reg c;
reg [17:0] z;
always @ (x or y ) begin
if ((x < y))
begin
divide_loop__r = {{1'b0,x},1'b0};
divide_loop__t = {2'b00,y};
begin :Block_Name_1
integer i;
for (i=17;i>=0;i=i-1) begin
begin
if ((divide_loop__r >= divide_loop__t))
begin
divide_loop__s[i] = 1'b1;
divide_loop__r = (divide_loop__r - divide_loop__t);
end
else
divide_loop__s[i] = 1'b0;
divide_loop__r = {divide_loop__r[18:0],1'b0};
end
end //for
end //end Block
z <= divide_loop__s;
c <= 1'b0;
end
else
begin
c <= 1'b1;
z <= 18'b000000000000000000;
end
end //always
endmodule
|
------------------------------------------------------------------------
-- Title Reverse Square-Root (1/sqr(X)) --
-- File RSQRT.vhd --
-- Entity RSQRT --
-- rev date coded contents --
-- 001 98/11/05 ueno Make Original --
------------------------------------------------------------------------
library ieee ;
use ieee.std_logic_1164.all ;
use ieee.std_logic_unsigned.all ;
--use IEEE.std_logic_signed.all ;
use IEEE.std_logic_arith.all ;
------------------------------------------------------------------------
-- entity --
------------------------------------------------------------------------
entity RSQRT is
port(
X : in std_logic_vector(19 downto 0) ; -- Input(20bit)
ZN : out std_logic_vector(3 downto 0) ; -- Exp(4bit)
ZM : out std_logic_vector(19 downto 0) -- Man(20bit)
);
end RSQRT ;
------------------------------------------------------------------------
-- architecture --
------------------------------------------------------------------------
architecture RTL of RSQRT is
--
-- 1st stages
-- 10bit calc
-- XX.XXXXXXXX
signal A : std_logic_vector(9 downto 0) ; --
constant CONSA : std_logic_vector(9 downto 0) := "1000000111" ; -- 2.02734375
--
-- 2nd stages
-- 16bit calc
-- XX.XXXXXXXXXXXXXXXX
signal B : std_logic_vector(15 downto 0) ; --
--
-- 3rd stages
-- 26bit calc
-- XX.XXXXXXXXXXXXXXXXXXXXXXXX
signal C : std_logic_vector(25 downto 0) ; --
--
-- Constant Value
constant CONSX : std_logic_vector(31 downto 0) := "11000000000000000000000000000000" ; -- 3.0
--
--
-- 0.XXXXXXXX
signal M : std_logic_vector(19 downto 0) ; -- Mantissa
signal N : std_logic_vector(3 downto 0) ; -- Expornent
begin
--------------------------------
-- Reverse Square-Root Argolizm
--
-- X = m x 4^n (m = 0.25~0.999999)
-- Z = 1/sqrt(X) = sqrt(m)/m x 2^-n
-- ^^^^^^^^^ |
-- ZM ZN
-- --1st stage (3.16bit)
-- a = (2.0275551-m) -- a = 1.78~1.02
-- --2nd stage (5.70bit) : 1000 LCs
-- b1 = (a*a) -- b1 = +3.17~+1.04
-- b2 = (m*b1) -- b2 = +0.813~+1.0208
-- b3 = (3-b2)/2 -- b3 = +0.99~+1.094
-- b4 = a*b3 -- b4 = +1.00~+1.98
-- b = b4
-- --3nd stage (10.82bit) : 2500 LCs
-- c1 = (b*b) -- c1 = +3.92~+1.00
-- c2 = (m*c1) -- c2 = +0.99~+1.01
-- c3 = (3-c2)/2 -- c3 = +0.99~+1.01
-- c4 = b*c3 -- c4 = +1.00~+1.99
-- c = c4
-- --4th stage (21.06bit) : ???? LCs
-- d1 = (c*c) -- d1 = +3.98~+1.00
-- d2 = (m*d1) -- d2 = +0.99~+1.01
-- d3 = (3-d2)/2 -- d3 = +0.99~+1.01
-- d4 = c*d3 -- d4 = +1.00~+1.99
-- d = d4
--
-- ZM = g3
-- ZN = n
--------------------------------
-----------------------------------------------------------
-- Initialize --
-----------------------------------------------------------
RSQRT_INIT : process( X )
begin
if( X(19 downto 0) = "00000000000000000000" ) then
M <= (others=>'0') ;
N <= (others=>'0') ;
else
-- Generate M,N
if( X(19 downto 2) = "000000000000000000" ) then
M <= X(1 downto 0) & "000000000000000000" ;
N <= "0001" ;
elsif( X(19 downto 4) = "0000000000000000" ) then
M <= X(3 downto 0) & "0000000000000000" ;
N <= "0010" ;
elsif( X(19 downto 6) = "00000000000000" ) then
M <= X(5 downto 0) & "00000000000000" ;
N <= "0011" ;
elsif( X(19 downto 8) = "000000000000" ) then
M <= X(7 downto 0) & "000000000000" ;
N <= "0100" ;
elsif( X(19 downto 10) = "0000000000" ) then
M <= X(9 downto 0) & "0000000000" ;
N <= "0101" ;
elsif( X(19 downto 12) = "00000000" ) then
M <= X(11 downto 0) & "00000000" ;
N <= "0110" ;
elsif( X(19 downto 14) = "000000" ) then
M <= X(13 downto 0) & "000000" ;
N <= "0111" ;
elsif( X(19 downto 16) = "0000" ) then
M <= X(15 downto 0) & "0000" ;
N <= "1000" ;
elsif( X(19 downto 18) = "00" ) then
M <= X(17 downto 0) & "00" ;
N <= "1001" ;
else
M <= X ;
N <= "1010" ;
end if ;
end if ;
end process ;
-----------------------------------------------------------
-- 1st stage --
-----------------------------------------------------------
RSQRT_1ST : process( M )
begin
if( M = "00000000000000000000" ) then
A <= (others=>'0') ;
else
-- A = 2.03-M
A <= CONSA - ("00" & M(19 downto 12)) ;
end if ;
end process ;
-----------------------------------------------------------
-- 2nd stage --
-----------------------------------------------------------
RSQRT_1ND : process( A )
variable B1 : std_logic_vector(17 downto 0); -- A(9bit)*A(9bit)
variable B2 : std_logic_vector(16 downto 0); -- M(8bit)*B1(9bit)
variable B3 : std_logic_vector(10 downto 0); -- 3-B2(11bit)
variable B4 : std_logic_vector(19 downto 0); -- A(9bit)*B3(11bit)
begin
if( A = "0000000000" ) then
B <= (others=>'0') ;
else
B1 := A(8 downto 0) * A(8 downto 0) ;
B2 := B1(17 downto 9) * M(19 downto 12) ;
B3 := CONSX(31 downto 21) - B2(16 downto 6) ;
B4 := B3 * A(8 downto 0) ;
B <= B4(19 downto 4) ;
end if ;
end process ;
-----------------------------------------------------------
-- 3rd stage --
-----------------------------------------------------------
RSQRT_3RD : process( B )
variable C1 : std_logic_vector(29 downto 0); -- B(15bit)*B(15bit)
variable C2 : std_logic_vector(31 downto 0); -- M(16bit)*C1(16bit)
variable C3 : std_logic_vector(18 downto 0); -- 3-C2(19bit)
variable C4 : std_logic_vector(33 downto 0); -- B(15bit)*C3(19bit)
begin
if( B = "0000000000000000" ) then
C <= (others=>'0') ;
else
C1 := B(14 downto 0) * B(14 downto 0) ;
C2 := C1(29 downto 14) * M(19 downto 4) ;
C3 := CONSX(31 downto 13) - C2(31 downto 13) ;
C4 := C3 * B(14 downto 0) ;
C <= C4(33 downto 8) ;
end if ;
end process ;
ZN <= N ;
--ZM <= A & "00000000000" ;
--ZM <= B & "0000" ;
ZM <= C(24 downto 5) ;
end RTL ;
------------------------------------------------------------------------
-- End of File --
------------------------------------------------------------------------
|
//-------------------------------------------------------------------
//
// This file is automatically generated by VHDL to Verilog Translator.
// Ver.1.08 Build Mar.6.2004
// www.sugawara-systems.com
// tech-support@sugawara-systems.com
// See Original Copyright Notice for property of the file .( somewhere in this file.)
//
//--------------------------------------------------------------------
//----------------------------------------------------------------------
// Title Reverse Square-Root (1/sqr(X)) --
// File RSQRT.vhd --
// Entity RSQRT --
// rev date coded contents --
// 001 98/11/05 ueno Make Original --
//----------------------------------------------------------------------
`timescale 1ns/1ns
`define ns 1
`define us (1000*`ns)
`define ms (1000*`us)
`define sec (1000*`ms)
module rsqrt ( x, zn, zm );
input [19:0] x ;
output [3:0] zn ;
output [19:0] zm ;
reg [17:0] rsqrt_1nd__b1;
reg [16:0] rsqrt_1nd__b2;
reg [10:0] rsqrt_1nd__b3;
reg [19:0] rsqrt_1nd__b4;
reg [29:0] rsqrt_3rd__c1;
reg [31:0] rsqrt_3rd__c2;
reg [18:0] rsqrt_3rd__c3;
reg [33:0] rsqrt_3rd__c4;
reg [9:0] a;
parameter [9:0] consa=10'b1000000111;
reg [15:0] b;
reg [25:0] c;
parameter [31:0] consx=32'b11000000000000000000000000000000;
reg [19:0] m;
reg [3:0] n;
wire [3:0] zn;
wire [19:0] zm;
always @ (x ) begin
if ((x[19:0] === 20'b00000000000000000000))
begin
m <= {(19-0+1- 0){1'b0}};
n <= {(3-0+1- 0){1'b0}};
end
else
begin
if ((x[19:2] === 18'b000000000000000000))
begin
m <= {x[1:0],18'b000000000000000000};
n <= 4'b0001;
end
else if ((x[19:4] === 16'b0000000000000000))
begin
m <= {x[3:0],16'b0000000000000000};
n <= 4'b0010;
end
else if ((x[19:6] === 14'b00000000000000))
begin
m <= {x[5:0],14'b00000000000000};
n <= 4'b0011;
end
else if ((x[19:8] === 12'b000000000000))
begin
m <= {x[7:0],12'b000000000000};
n <= 4'b0100;
end
else if ((x[19:10] === 10'b0000000000))
begin
m <= {x[9:0],10'b0000000000};
n <= 4'b0101;
end
else if ((x[19:12] === 8'b00000000))
begin
m <= {x[11:0],8'b00000000};
n <= 4'b0110;
end
else if ((x[19:14] === 6'b000000))
begin
m <= {x[13:0],6'b000000};
n <= 4'b0111;
end
else if ((x[19:16] === 4'b0000))
begin
m <= {x[15:0],4'b0000};
n <= 4'b1000;
end
else if ((x[19:18] === 2'b00))
begin
m <= {x[17:0],2'b00};
n <= 4'b1001;
end
else
begin
m <= x;
n <= 4'b1010;
end
end
end //always
always @ (m ) begin
if ((m === 20'b00000000000000000000))
a <= {(9-0+1- 0){1'b0}};
else
a <= (consa - {2'b00,m[19:12]});
end //always
always @ (a ) begin
if ((a === 10'b0000000000))
b <= {(15-0+1- 0){1'b0}};
else
begin
rsqrt_1nd__b1 = (a[8:0] * a[8:0]);
rsqrt_1nd__b2 = (rsqrt_1nd__b1[17:9] * m[19:12]);
rsqrt_1nd__b3 = (consx[31:21] - rsqrt_1nd__b2[16:6]);
rsqrt_1nd__b4 = (rsqrt_1nd__b3 * a[8:0]);
b <= rsqrt_1nd__b4[19:4];
end
end //always
always @ (b ) begin
if ((b === 16'b0000000000000000))
c <= {(25-0+1- 0){1'b0}};
else
begin
rsqrt_3rd__c1 = (b[14:0] * b[14:0]);
rsqrt_3rd__c2 = (rsqrt_3rd__c1[29:14] * m[19:4]);
rsqrt_3rd__c3 = (consx[31:13] - rsqrt_3rd__c2[31:13]);
rsqrt_3rd__c4 = (rsqrt_3rd__c3 * b[14:0]);
c <= rsqrt_3rd__c4[33:8];
end
end //always
assign {zn}=n;
assign {zm}=c[24:5];
endmodule
|
------------------------------------------------------------------------

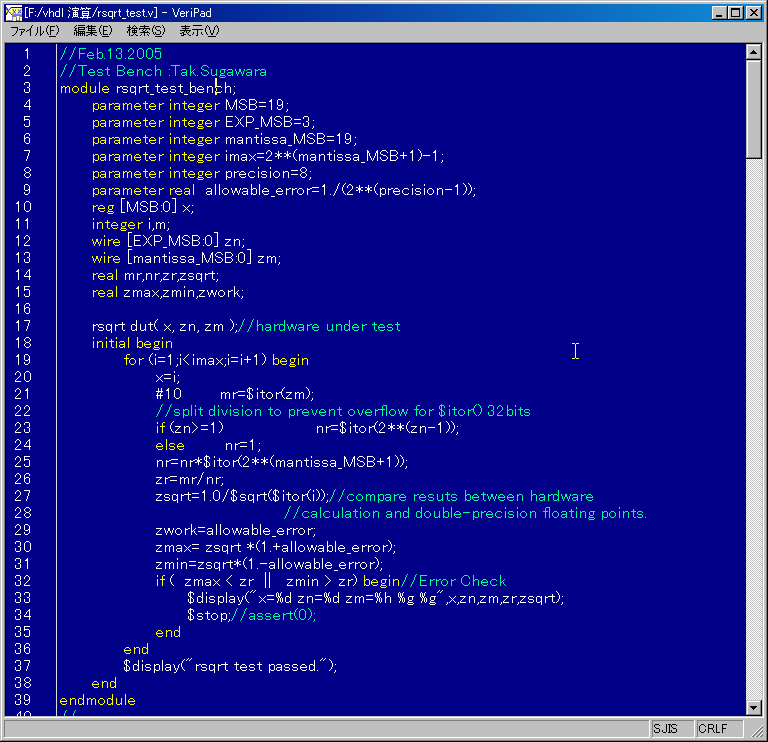

-- Title Reverse Square-Root (1/sqr(X)) --
-- File RSQRT.vhd --
-- Entity RSQRT --
-- rev date coded contents --
-- 001 98/11/05 ueno Make Original --
-- 002 98/11/10 ueno 4th stage up --
------------------------------------------------------------------------
library ieee ;
use ieee.std_logic_1164.all ;
use ieee.std_logic_unsigned.all ;
--use IEEE.std_logic_signed.all ;
use IEEE.std_logic_arith.all ;
------------------------------------------------------------------------
-- entity --
------------------------------------------------------------------------
entity RSQRT is
port(
X : in std_logic_vector(19 downto 0) ; -- Input(20bit)
ZN : out std_logic_vector(3 downto 0) ; -- Exp(4bit)
ZM : out std_logic_vector(19 downto 0) -- Man(20bit)
);
end RSQRT ;
------------------------------------------------------------------------
-- architecture --
------------------------------------------------------------------------
architecture RTL of RSQRT is
--
-- 1st stages
-- 10bit calc
-- XX.XXXXXXXX
signal A : std_logic_vector(9 downto 0) ; --
constant CONSA : std_logic_vector(9 downto 0) := "1000000111" ; -- 2.02734375
--
-- 2nd stages
-- 16bit calc
-- XX.XXXXXXXXXXXXXXXX
signal B : std_logic_vector(15 downto 0) ; --
--
-- 3rd stages
-- 24bit calc
-- XX.XXXXXXXXXXXXXXXXXXXXXX
signal C : std_logic_vector(23 downto 0) ; --
--
-- 4th stages
-- 24bit calc
-- XX.XXXXXXXXXXXXXXXXXXXXXX
signal D : std_logic_vector(23 downto 0) ; --
--
-- Constant Value
constant CONSX : std_logic_vector(31 downto 0) := "11000000000000000000000000000000" ; -- 3.0
--
--
-- 0.XXXXXXXX
signal M : std_logic_vector(19 downto 0) ; -- Mantissa
signal N : std_logic_vector(3 downto 0) ; -- Expornent
begin
--------------------------------
-- Reverse Square-Root Argolizm
--
-- X = m x 4^n (m = 0.25~0.999999)
-- Z = 1/sqrt(X) = sqrt(m)/m x 2^-n
-- ^^^^^^^^^ |
-- ZM ZN
-- --1st stage (3.16bit)
-- a = (2.0275551-m) -- a = 1.78~1.02
-- --2nd stage (5.70bit) : 1000 LCs
-- b1 = (a*a) -- b1 = +3.17~+1.04
-- b2 = (m*b1) -- b2 = +0.813~+1.0208
-- b3 = (3-b2)/2 -- b3 = +0.99~+1.094
-- b4 = a*b3 -- b4 = +1.00~+1.98
-- b = b4
-- --3nd stage (10.82bit) : 2500 LCs
-- c1 = (b*b) -- c1 = +3.92~+1.00
-- c2 = (m*c1) -- c2 = +0.99~+1.01
-- c3 = (3-c2)/2 -- c3 = +0.99~+1.01
-- c4 = b*c3 -- c4 = +1.00~+1.99
-- c = c4
-- --4th stage (21.06bit) : 5000 LCs
-- d1 = (c*c) -- d1 = +3.98~+1.00
-- d2 = (m*d1) -- d2 = +0.99~+1.01
-- d3 = (3-d2)/2 -- d3 = +0.99~+1.01
-- d4 = c*d3 -- d4 = +1.00~+1.99
-- d = d4
--
-- ZM = g3
-- ZN = n
--------------------------------
-----------------------------------------------------------
-- Initialize --
-----------------------------------------------------------
RSQRT_INIT : process( X )
begin
if( X(19 downto 0) = "00000000000000000000" ) then
M <= (others=>'0') ;
N <= (others=>'0') ;
else
-- Generate M,N
if( X(19 downto 2) = "000000000000000000" ) then
M <= X(1 downto 0) & "000000000000000000" ;
N <= "0001" ;
elsif( X(19 downto 4) = "0000000000000000" ) then
M <= X(3 downto 0) & "0000000000000000" ;
N <= "0010" ;
elsif( X(19 downto 6) = "00000000000000" ) then
M <= X(5 downto 0) & "00000000000000" ;
N <= "0011" ;
elsif( X(19 downto 8) = "000000000000" ) then
M <= X(7 downto 0) & "000000000000" ;
N <= "0100" ;
elsif( X(19 downto 10) = "0000000000" ) then
M <= X(9 downto 0) & "0000000000" ;
N <= "0101" ;
elsif( X(19 downto 12) = "00000000" ) then
M <= X(11 downto 0) & "00000000" ;
N <= "0110" ;
elsif( X(19 downto 14) = "000000" ) then
M <= X(13 downto 0) & "000000" ;
N <= "0111" ;
elsif( X(19 downto 16) = "0000" ) then
M <= X(15 downto 0) & "0000" ;
N <= "1000" ;
elsif( X(19 downto 18) = "00" ) then
M <= X(17 downto 0) & "00" ;
N <= "1001" ;
else
M <= X ;
N <= "1010" ;
end if ;
end if ;
end process ;
-----------------------------------------------------------
-- 1st stage --
-----------------------------------------------------------
RSQRT_1ST : process( M )
begin
if( M = "00000000000000000000" ) then
A <= (others=>'0') ;
else
-- A = 2.03-M
A <= CONSA - ("00" & M(19 downto 12)) ;
end if ;
end process ;
-----------------------------------------------------------
-- 2nd stage --
-----------------------------------------------------------
RSQRT_1ND : process( M, A )
variable B1 : std_logic_vector(17 downto 0); -- A(9bit)*A(9bit)
variable B2 : std_logic_vector(16 downto 0); -- M(8bit)*B1(9bit)
variable B3 : std_logic_vector(10 downto 0); -- 3-B2(11bit)
variable B4 : std_logic_vector(19 downto 0); -- A(9bit)*B3(11bit)
begin
if( A = "0000000000" ) then
B <= (others=>'0') ;
else
B1 := A(8 downto 0) * A(8 downto 0) ;
B2 := B1(17 downto 9) * M(19 downto 12) ;
B3 := CONSX(31 downto 21) - B2(16 downto 6) ;
B4 := B3 * A(8 downto 0) ;
B <= B4(19 downto 4) ;
end if ;
end process ;
-----------------------------------------------------------
-- 3rd stage --
-----------------------------------------------------------
RSQRT_3RD : process( M, B )
variable C1 : std_logic_vector(29 downto 0); -- B(15bit)*B(15bit)
variable C2 : std_logic_vector(31 downto 0); -- M(16bit)*C1(16bit)
variable C3 : std_logic_vector(18 downto 0); -- 3-C2(19bit)
variable C4 : std_logic_vector(33 downto 0); -- B(15bit)*C3(19bit)
begin
if( B = "0000000000000000" ) then
C <= (others=>'0') ;
else
C1 := B(14 downto 0) * B(14 downto 0) ;
C2 := C1(29 downto 14) * M(19 downto 4) ;
C3 := CONSX(31 downto 13) - C2(31 downto 13) ;
C4 := C3 * B(14 downto 0) ;
C <= C4(33 downto 10) ;
end if ;
end process ;
-----------------------------------------------------------
-- 4th stage --
-----------------------------------------------------------
RSQRT_4TH : process( M, C )
variable D1 : std_logic_vector(39 downto 0); -- C(20bit)*C(20bit)
variable D2 : std_logic_vector(39 downto 0); -- M(20bit)*D1(20bit)
variable D3 : std_logic_vector(23 downto 0); -- 3-D2(24bit)
variable D4 : std_logic_vector(43 downto 0); -- C(20bit)*D3(24bit)
begin
if( C = "000000000000000000000000" ) then
D <= (others=>'0') ;
else
D1 := C(22 downto 3) * C(22 downto 3) ;
D2 := D1(39 downto 20) * M(19 downto 0) ;
D3 := CONSX(31 downto 8) - D2(39 downto 16) ;
D4 := D3 * C(22 downto 3) ;
D <= D4(43 downto 20) ;
end if ;
end process ;
ZN <= N ;
--ZM <= A & "00000000000" ;
--ZM <= B & "0000" ;
--ZM <= C(22 downto 3) ;
ZM <= D(22 downto 3) ;
end RTL ;
------------------------------------------------------------------------
-- End of File --
------------------------------------------------------------------------
|
//-------------------------------------------------------------------
//
// This file is automatically generated by VHDL to Verilog Translator.
// Ver.1.08 Build Mar.6.2004
// www.sugawara-systems.com
// tech-support@sugawara-systems.com
// See Original Copyright Notice for property of the file .( somewhere in this file.)
//
//--------------------------------------------------------------------
//----------------------------------------------------------------------
// Title Reverse Square-Root (1/sqr(X)) --
// File RSQRT.vhd --
// Entity RSQRT --
// rev date coded contents --
// 001 98/11/05 ueno Make Original --
// 002 98/11/10 ueno 4th stage up --
//----------------------------------------------------------------------
`timescale 1ns/1ns
`define ns 1
`define us (1000*`ns)
`define ms (1000*`us)
`define sec (1000*`ms)
module rsqrt ( x, zn, zm );
input [19:0] x ;
output [3:0] zn ;
output [19:0] zm ;
reg [17:0] rsqrt_1nd__b1;
reg [16:0] rsqrt_1nd__b2;
reg [10:0] rsqrt_1nd__b3;
reg [19:0] rsqrt_1nd__b4;
reg [29:0] rsqrt_3rd__c1;
reg [31:0] rsqrt_3rd__c2;
reg [18:0] rsqrt_3rd__c3;
reg [33:0] rsqrt_3rd__c4;
reg [39:0] rsqrt_4th__d1;
reg [39:0] rsqrt_4th__d2;
reg [23:0] rsqrt_4th__d3;
reg [43:0] rsqrt_4th__d4;
reg [9:0] a;
parameter [9:0] consa=10'b1000000111;
reg [15:0] b;
reg [23:0] c;
reg [23:0] d;
parameter [31:0] consx=32'b11000000000000000000000000000000;
reg [19:0] m;
reg [3:0] n;
wire [3:0] zn;
wire [19:0] zm;
always @ (x ) begin
if ((x[19:0] === 20'b00000000000000000000))
begin
m <= {(19-0+1- 0){1'b0}};
n <= {(3-0+1- 0){1'b0}};
end
else
begin
if ((x[19:2] === 18'b000000000000000000))
begin
m <= {x[1:0],18'b000000000000000000};
n <= 4'b0001;
end
else if ((x[19:4] === 16'b0000000000000000))
begin
m <= {x[3:0],16'b0000000000000000};
n <= 4'b0010;
end
else if ((x[19:6] === 14'b00000000000000))
begin
m <= {x[5:0],14'b00000000000000};
n <= 4'b0011;
end
else if ((x[19:8] === 12'b000000000000))
begin
m <= {x[7:0],12'b000000000000};
n <= 4'b0100;
end
else if ((x[19:10] === 10'b0000000000))
begin
m <= {x[9:0],10'b0000000000};
n <= 4'b0101;
end
else if ((x[19:12] === 8'b00000000))
begin
m <= {x[11:0],8'b00000000};
n <= 4'b0110;
end
else if ((x[19:14] === 6'b000000))
begin
m <= {x[13:0],6'b000000};
n <= 4'b0111;
end
else if ((x[19:16] === 4'b0000))
begin
m <= {x[15:0],4'b0000};
n <= 4'b1000;
end
else if ((x[19:18] === 2'b00))
begin
m <= {x[17:0],2'b00};
n <= 4'b1001;
end
else
begin
m <= x;
n <= 4'b1010;
end
end
end //always
always @ (m ) begin
if ((m === 20'b00000000000000000000))
a <= {(9-0+1- 0){1'b0}};
else
a <= (consa - {2'b00,m[19:12]});
end //always
always @ (m or a ) begin
if ((a === 10'b0000000000))
b <= {(15-0+1- 0){1'b0}};
else
begin
rsqrt_1nd__b1 = (a[8:0] * a[8:0]);
rsqrt_1nd__b2 = (rsqrt_1nd__b1[17:9] * m[19:12]);
rsqrt_1nd__b3 = (consx[31:21] - rsqrt_1nd__b2[16:6]);
rsqrt_1nd__b4 = (rsqrt_1nd__b3 * a[8:0]);
b <= rsqrt_1nd__b4[19:4];
end
end //always
always @ (m or b ) begin
if ((b === 16'b0000000000000000))
c <= {(23-0+1- 0){1'b0}};
else
begin
rsqrt_3rd__c1 = (b[14:0] * b[14:0]);
rsqrt_3rd__c2 = (rsqrt_3rd__c1[29:14] * m[19:4]);
rsqrt_3rd__c3 = (consx[31:13] - rsqrt_3rd__c2[31:13]);
rsqrt_3rd__c4 = (rsqrt_3rd__c3 * b[14:0]);
c <= rsqrt_3rd__c4[33:10];
end
end //always
always @ (m or c ) begin
if ((c === 24'b000000000000000000000000))
d <= {(23-0+1- 0){1'b0}};
else
begin
rsqrt_4th__d1 = (c[22:3] * c[22:3]);
rsqrt_4th__d2 = (rsqrt_4th__d1[39:20] * m[19:0]);
rsqrt_4th__d3 = (consx[31:8] - rsqrt_4th__d2[39:16]);
rsqrt_4th__d4 = (rsqrt_4th__d3 * c[22:3]);
d <= rsqrt_4th__d4[43:20];
end
end //always
assign {zn}=n;
assign {zm}=d[22:3];
endmodule
|
------------------------------------------------------------------------
-- Title Reverse X (1/X) --
-- File REVX.vhd --
-- Entity REVX --
-- rev date coded contents --
-- 001 98/11/10 ueno Make Original --
------------------------------------------------------------------------
library ieee ;
use ieee.std_logic_1164.all ;
use ieee.std_logic_unsigned.all ;
--use IEEE.std_logic_signed.all ;
use IEEE.std_logic_arith.all ;
------------------------------------------------------------------------
-- entity --
------------------------------------------------------------------------
entity REVX is
port(
X : in std_logic_vector(19 downto 0) ; -- Input(20bit)
ZN : out std_logic_vector(4 downto 0) ; -- Exp(5bit)
ZM : out std_logic_vector(19 downto 0) -- Man(20bit)
);
end REVX ;
------------------------------------------------------------------------
-- architecture --
------------------------------------------------------------------------
architecture RTL of REVX is
--
-- 1st stages
-- 10bit calc
-- XX.XXXXXXXX
signal A : std_logic_vector(9 downto 0) ; --
constant CONSA : std_logic_vector(9 downto 0) := "1100000000" ; -- 3
--
-- 2nd stages
-- 16bit calc
-- XX.XXXXXXXXXXXXXXXX
signal B : std_logic_vector(15 downto 0) ; --
--
-- 3rd stages
-- 24bit calc
-- XX.XXXXXXXXXXXXXXXXXXXXXX
signal C : std_logic_vector(23 downto 0) ; --
--
-- 4th stages
-- 24bit calc
-- XX.XXXXXXXXXXXXXXXXXXXXXX
signal D : std_logic_vector(23 downto 0) ; --
--
-- Constant Value
constant CONSX : std_logic_vector(31 downto 0) := "10000000000000000000000000000000" ; -- 2.0
--
--
-- 0.XXXXXXXX
signal M : std_logic_vector(19 downto 0) ; -- Mantissa
signal N : std_logic_vector(4 downto 0) ; -- Expornent
begin
--------------------------------
-- Reverse X Argolizm (X>0)
--
-- X = m x 2^n (m = 0.5~0.999999)
-- Z = 1/X = 1/m x 2^-n
-- | |
-- ZM ZN
-- --1st stage (3bit)
-- a = (3-2*m) -- a = 1~2 (3.00bit)
-- a = (723-482*m)/256 -- a = 1~2 (4.08bit)
-- --2nd stage (6bit) : xxxx LCs
-- b1 = (m*a) -- b1 = 1~1.125
-- b2 = (2-b1) -- b2 = 0.875~1
-- b3 = a*b2 -- b3 = 1~2
-- b = b3
-- --3nd stage (12bit) : xxxx LCs
-- c1 = (m*b) -- c1 = 0.98~1
-- c2 = (2-c1) -- c2 = 1~1.01
-- c3 = b*c2 -- c3 = 1~2
-- c = c4
-- --4th stage (24bit) : ???? LCs
-- d1 = (m*c) -- d1 = 0.99~1
-- d2 = (3-d1) -- d2 = 1~1.00
-- d3 = c*d2 -- d3 = 1~2
-- d = d4
--
-- ZM = d
-- ZN = n
--------------------------------
-----------------------------------------------------------
-- Initialize --
-----------------------------------------------------------
REVX_INIT : process( X )
begin
if( X(19 downto 0) = "00000000000000000000" ) then
M <= (others=>'0') ;
N <= (others=>'0') ;
else
-- Generate M,N
if( X(19 downto 1) = "0000000000000000000" ) then
M <= X(0) & "0000000000000000000" ;
N <= "00001" ;
elsif( X(19 downto 2) = "000000000000000000" ) then
M <= X(1 downto 0) & "000000000000000000" ;
N <= "00010" ;
elsif( X(19 downto 3) = "00000000000000000" ) then
M <= X(2 downto 0) & "00000000000000000" ;
N <= "00011" ;
elsif( X(19 downto 4) = "0000000000000000" ) then
M <= X(3 downto 0) & "0000000000000000" ;
N <= "00100" ;
elsif( X(19 downto 5) = "000000000000000" ) then
M <= X(4 downto 0) & "000000000000000" ;
N <= "00101" ;
elsif( X(19 downto 6) = "00000000000000" ) then
M <= X(5 downto 0) & "00000000000000" ;
N <= "00110" ;
elsif( X(19 downto 7) = "0000000000000" ) then
M <= X(6 downto 0) & "0000000000000" ;
N <= "00111" ;
elsif( X(19 downto 8) = "000000000000" ) then
M <= X(7 downto 0) & "000000000000" ;
N <= "01000" ;
elsif( X(19 downto 9) = "00000000000" ) then
M <= X(8 downto 0) & "00000000000" ;
N <= "01001" ;
elsif( X(19 downto 10) = "0000000000" ) then
M <= X(9 downto 0) & "0000000000" ;
N <= "01010" ;
elsif( X(19 downto 11) = "000000000" ) then
M <= X(10 downto 0) & "000000000" ;
N <= "01011" ;
elsif( X(19 downto 12) = "00000000" ) then
M <= X(11 downto 0) & "00000000" ;
N <= "01100" ;
elsif( X(19 downto 13) = "0000000" ) then
M <= X(12 downto 0) & "0000000" ;
N <= "01101" ;
elsif( X(19 downto 14) = "000000" ) then
M <= X(13 downto 0) & "000000" ;
N <= "01110" ;
elsif( X(19 downto 15) = "00000" ) then
M <= X(14 downto 0) & "00000" ;
N <= "01111" ;
elsif( X(19 downto 16) = "0000" ) then
M <= X(15 downto 0) & "0000" ;
N <= "10000" ;
elsif( X(19 downto 17) = "000" ) then
M <= X(16 downto 0) & "000" ;
N <= "10001" ;
elsif( X(19 downto 18) = "00" ) then
M <= X(17 downto 0) & "00" ;
N <= "10010" ;
elsif( X(19) = '0' ) then
M <= X(18 downto 0) & '0' ;
N <= "10011" ;
else
M <= X ;
N <= "10100" ;
end if ;
end if ;
end process ;
-----------------------------------------------------------
-- 1st stage --
-----------------------------------------------------------
REVX_1ST : process( M )
begin
if( M = "00000000000000000000" ) then
A <= (others=>'0') ;
else
-- A = 3-2*M
A <= CONSA - ('0' & M(19 downto 11)) ;
end if ;
end process ;
-----------------------------------------------------------
-- 2nd stage --
-----------------------------------------------------------
REVX_1ND : process( M, A )
variable B1 : std_logic_vector(19 downto 0); -- M(10bit)*A(10bit) XX.XX....
variable B2 : std_logic_vector(11 downto 0); -- 2-B1(12bit) X.XX....
variable B3 : std_logic_vector(21 downto 0); -- A(10bit)*B2(12bit) XXX.XX....
begin
if( A = "0000000000" ) then
B <= (others=>'0') ;
else
B1 := M(19 downto 10) * A ;
B2 := CONSX(30 downto 19) - B1(18 downto 7) ;
B3 := B2 * A ;
B <= B3(20 downto 5) ;
end if ;
end process ;
-----------------------------------------------------------
-- 3rd stage --
-----------------------------------------------------------
REVX_3RD : process( M, B )
variable C1 : std_logic_vector(31 downto 0); -- M(16bit)*B(16bit) XX.XX...
variable C2 : std_logic_vector(19 downto 0); -- 2-C1(20bit) X.XX...
variable C3 : std_logic_vector(35 downto 0); -- B(16bit)*C2(20bit) XXX.XX...
begin
if( B = "0000000000000000" ) then
C <= (others=>'0') ;
else
C1 := B * M(19 downto 4) ;
C2 := CONSX(30 downto 11) - C1(30 downto 11) ;
C3 := C2 * B ;
C <= C3(34 downto 11) ;
end if ;
end process ;
-----------------------------------------------------------
-- 4th stage --
-----------------------------------------------------------
REVX_4TH : process( M, C )
variable D1 : std_logic_vector(39 downto 0); -- M(20bit)*C(20bit) XX.XX...
variable D2 : std_logic_vector(23 downto 0); -- 2-D1(24bit) X.XX...
variable D3 : std_logic_vector(43 downto 0); -- C(20bit)*D2(24bit) XXX.XX...
begin
if( C = "000000000000000000000000" ) then
D <= (others=>'0') ;
else
D1 := C(23 downto 4) * M ;
D2 := CONSX(30 downto 7) - D1(38 downto 15) ;
D3 := D2 * C(23 downto 4) ;
D <= D3(42 downto 19) ;
end if ;
end process ;
ZN <= N ;
--ZM <= A & "0000000000" ;
--ZM <= B & "0000" ;
ZM <= C(23 downto 4) ;
--ZM <= D(23 downto 4) ;
end RTL ;
------------------------------------------------------------------------
-- End of File --
------------------------------------------------------------------------
|
//-------------------------------------------------------------------
//
// This file is automatically generated by VHDL to Verilog Translator.
// Ver.1.08 Build Mar.6.2004
// www.sugawara-systems.com
// tech-support@sugawara-systems.com
// See Original Copyright Notice for property of the file .( somewhere in this file.)
//
//--------------------------------------------------------------------
//----------------------------------------------------------------------
// Title Reverse X (1/X) --
// File REVX.vhd --
// Entity REVX --
// rev date coded contents --
// 001 98/11/10 ueno Make Original --
//----------------------------------------------------------------------
`timescale 1ns/1ns
`define ns 1
`define us (1000*`ns)
`define ms (1000*`us)
`define sec (1000*`ms)
module revx ( x, zn, zm );
input [19:0] x ;
output [4:0] zn ;
output [19:0] zm ;
reg [19:0] revx_1nd__b1;
reg [11:0] revx_1nd__b2;
reg [21:0] revx_1nd__b3;
reg [31:0] revx_3rd__c1;
reg [19:0] revx_3rd__c2;
reg [35:0] revx_3rd__c3;
reg [39:0] revx_4th__d1;
reg [23:0] revx_4th__d2;
reg [43:0] revx_4th__d3;
reg [9:0] a;
parameter [9:0] consa=10'b1100000000;
reg [15:0] b;
reg [23:0] c;
reg [23:0] d;
parameter [31:0] consx=32'b10000000000000000000000000000000;
reg [19:0] m;
reg [4:0] n;
wire [4:0] zn;
wire [19:0] zm;
always @ (x ) begin
if ((x[19:0] === 20'b00000000000000000000))
begin
m <= {(19-0+1- 0){1'b0}};
n <= {(4-0+1- 0){1'b0}};
end
else
begin
if ((x[19:1] === 19'b0000000000000000000))
begin
m <= {x[0],19'b0000000000000000000};
n <= 5'b00001;
end
else if ((x[19:2] === 18'b000000000000000000))
begin
m <= {x[1:0],18'b000000000000000000};
n <= 5'b00010;
end
else if ((x[19:3] === 17'b00000000000000000))
begin
m <= {x[2:0],17'b00000000000000000};
n <= 5'b00011;
end
else if ((x[19:4] === 16'b0000000000000000))
begin
m <= {x[3:0],16'b0000000000000000};
n <= 5'b00100;
end
else if ((x[19:5] === 15'b000000000000000))
begin
m <= {x[4:0],15'b000000000000000};
n <= 5'b00101;
end
else if ((x[19:6] === 14'b00000000000000))
begin
m <= {x[5:0],14'b00000000000000};
n <= 5'b00110;
end
else if ((x[19:7] === 13'b0000000000000))
begin
m <= {x[6:0],13'b0000000000000};
n <= 5'b00111;
end
else if ((x[19:8] === 12'b000000000000))
begin
m <= {x[7:0],12'b000000000000};
n <= 5'b01000;
end
else if ((x[19:9] === 11'b00000000000))
begin
m <= {x[8:0],11'b00000000000};
n <= 5'b01001;
end
else if ((x[19:10] === 10'b0000000000))
begin
m <= {x[9:0],10'b0000000000};
n <= 5'b01010;
end
else if ((x[19:11] === 9'b000000000))
begin
m <= {x[10:0],9'b000000000};
n <= 5'b01011;
end
else if ((x[19:12] === 8'b00000000))
begin
m <= {x[11:0],8'b00000000};
n <= 5'b01100;
end
else if ((x[19:13] === 7'b0000000))
begin
m <= {x[12:0],7'b0000000};
n <= 5'b01101;
end
else if ((x[19:14] === 6'b000000))
begin
m <= {x[13:0],6'b000000};
n <= 5'b01110;
end
else if ((x[19:15] === 5'b00000))
begin
m <= {x[14:0],5'b00000};
n <= 5'b01111;
end
else if ((x[19:16] === 4'b0000))
begin
m <= {x[15:0],4'b0000};
n <= 5'b10000;
end
else if ((x[19:17] === 3'b000))
begin
m <= {x[16:0],3'b000};
n <= 5'b10001;
end
else if ((x[19:18] === 2'b00))
begin
m <= {x[17:0],2'b00};
n <= 5'b10010;
end
else if ((x[19] === 1'b0))
begin
m <= {x[18:0],1'b0};
n <= 5'b10011;
end
else
begin
m <= x;
n <= 5'b10100;
end
end
end //always
always @ (m ) begin
if ((m === 20'b00000000000000000000))
a <= {(9-0+1- 0){1'b0}};
else
a <= (consa - {1'b0,m[19:11]});
end //always
always @ (m or a ) begin
if ((a === 10'b0000000000))
b <= {(15-0+1- 0){1'b0}};
else
begin
revx_1nd__b1 = (m[19:10] * a);
revx_1nd__b2 = (consx[30:19] - revx_1nd__b1[18:7]);
revx_1nd__b3 = (revx_1nd__b2 * a);
b <= revx_1nd__b3[20:5];
end
end //always
always @ (m or b ) begin
if ((b === 16'b0000000000000000))
c <= {(23-0+1- 0){1'b0}};
else
begin
revx_3rd__c1 = (b * m[19:4]);
revx_3rd__c2 = (consx[30:11] - revx_3rd__c1[30:11]);
revx_3rd__c3 = (revx_3rd__c2 * b);
c <= revx_3rd__c3[34:11];
end
end //always
always @ (m or c ) begin
if ((c === 24'b000000000000000000000000))
d <= {(23-0+1- 0){1'b0}};
else
begin
revx_4th__d1 = (c[23:4] * m);
revx_4th__d2 = (consx[30:7] - revx_4th__d1[38:15]);
revx_4th__d3 = (revx_4th__d2 * c[23:4]);
d <= revx_4th__d3[42:19];
end
end //always
assign {zn}=n;
assign {zm}=c[23:4];
endmodule
|
------------------------------------------------------------------------
-- Title Reverse X (1/X) --
-- File REVX.vhd --
-- Entity REVX --
-- rev date coded contents --
-- 001 98/11/10 ueno Make Original --
------------------------------------------------------------------------
library ieee ;
use ieee.std_logic_1164.all ;
use ieee.std_logic_unsigned.all ;
--use IEEE.std_logic_signed.all ;
use IEEE.std_logic_arith.all ;
------------------------------------------------------------------------
-- entity --
------------------------------------------------------------------------
entity REVX is
port(
X : in std_logic_vector(19 downto 0) ; -- Input(20bit)
ZN : out std_logic_vector(4 downto 0) ; -- Exp(5bit)
ZM : out std_logic_vector(19 downto 0) -- Man(20bit)
);
end REVX ;
------------------------------------------------------------------------
-- architecture --
------------------------------------------------------------------------
architecture RTL of REVX is
--
-- 1st stages
-- 10bit calc
-- XX.XXXXXXXX
signal A : std_logic_vector(9 downto 0) ; --
constant CONSA : std_logic_vector(9 downto 0) := "1100000000" ; -- 3
--
-- 2nd stages
-- 16bit calc
-- XX.XXXXXXXXXXXXXXXX
signal B : std_logic_vector(15 downto 0) ; --
--
-- 3rd stages
-- 24bit calc
-- XX.XXXXXXXXXXXXXXXXXXXXXX
signal C : std_logic_vector(23 downto 0) ; --
--
-- 4th stages
-- 24bit calc
-- XX.XXXXXXXXXXXXXXXXXXXXXX
signal D : std_logic_vector(23 downto 0) ; --
--
-- Constant Value
constant CONSX : std_logic_vector(31 downto 0) := "10000000000000000000000000000000" ; -- 2.0
--
--
-- 0.XXXXXXXX
signal M : std_logic_vector(19 downto 0) ; -- Mantissa
signal N : std_logic_vector(4 downto 0) ; -- Expornent
begin
--------------------------------
-- Reverse X Argolizm (X>0)
--
-- X = m x 2^n (m = 0.5~0.999999)
-- Z = 1/X = 1/m x 2^-n
-- | |
-- ZM ZN
-- --1st stage (3bit)
-- a = (3-2*m) -- a = 1~2 (3.00bit)
-- a = (723-482*m)/256 -- a = 1~2 (4.08bit)
-- --2nd stage (6bit) : xxxx LCs
-- b1 = (m*a) -- b1 = 1~1.125
-- b2 = (2-b1) -- b2 = 0.875~1
-- b3 = a*b2 -- b3 = 1~2
-- b = b3
-- --3nd stage (12bit) : xxxx LCs
-- c1 = (m*b) -- c1 = 0.98~1
-- c2 = (2-c1) -- c2 = 1~1.01
-- c3 = b*c2 -- c3 = 1~2
-- c = c4
-- --4th stage (24bit) : ???? LCs
-- d1 = (m*c) -- d1 = 0.99~1
-- d2 = (3-d1) -- d2 = 1~1.00
-- d3 = c*d2 -- d3 = 1~2
-- d = d4
--
-- ZM = d
-- ZN = n
--------------------------------
-----------------------------------------------------------
-- Initialize --
-----------------------------------------------------------
REVX_INIT : process( X )
begin
if( X(19 downto 0) = "00000000000000000000" ) then
M <= (others=>'0') ;
N <= (others=>'0') ;
else
-- Generate M,N
if( X(19 downto 1) = "0000000000000000000" ) then
M <= X(0) & "0000000000000000000" ;
N <= "00001" ;
elsif( X(19 downto 2) = "000000000000000000" ) then
M <= X(1 downto 0) & "000000000000000000" ;
N <= "00010" ;
elsif( X(19 downto 3) = "00000000000000000" ) then
M <= X(2 downto 0) & "00000000000000000" ;
N <= "00011" ;
elsif( X(19 downto 4) = "0000000000000000" ) then
M <= X(3 downto 0) & "0000000000000000" ;
N <= "00100" ;
elsif( X(19 downto 5) = "000000000000000" ) then
M <= X(4 downto 0) & "000000000000000" ;
N <= "00101" ;
elsif( X(19 downto 6) = "00000000000000" ) then
M <= X(5 downto 0) & "00000000000000" ;
N <= "00110" ;
elsif( X(19 downto 7) = "0000000000000" ) then
M <= X(6 downto 0) & "0000000000000" ;
N <= "00111" ;
elsif( X(19 downto 8) = "000000000000" ) then
M <= X(7 downto 0) & "000000000000" ;
N <= "01000" ;
elsif( X(19 downto 9) = "00000000000" ) then
M <= X(8 downto 0) & "00000000000" ;
N <= "01001" ;
elsif( X(19 downto 10) = "0000000000" ) then
M <= X(9 downto 0) & "0000000000" ;
N <= "01010" ;
elsif( X(19 downto 11) = "000000000" ) then
M <= X(10 downto 0) & "000000000" ;
N <= "01011" ;
elsif( X(19 downto 12) = "00000000" ) then
M <= X(11 downto 0) & "00000000" ;
N <= "01100" ;
elsif( X(19 downto 13) = "0000000" ) then
M <= X(12 downto 0) & "0000000" ;
N <= "01101" ;
elsif( X(19 downto 14) = "000000" ) then
M <= X(13 downto 0) & "000000" ;
N <= "01110" ;
elsif( X(19 downto 15) = "00000" ) then
M <= X(14 downto 0) & "00000" ;
N <= "01111" ;
elsif( X(19 downto 16) = "0000" ) then
M <= X(15 downto 0) & "0000" ;
N <= "10000" ;
elsif( X(19 downto 17) = "000" ) then
M <= X(16 downto 0) & "000" ;
N <= "10001" ;
elsif( X(19 downto 18) = "00" ) then
M <= X(17 downto 0) & "00" ;
N <= "10010" ;
elsif( X(19) = '0' ) then
M <= X(18 downto 0) & '0' ;
N <= "10011" ;
else
M <= X ;
N <= "10100" ;
end if ;
end if ;
end process ;
-----------------------------------------------------------
-- 1st stage --
-----------------------------------------------------------
REVX_1ST : process( M )
begin
if( M = "00000000000000000000" ) then
A <= (others=>'0') ;
else
-- A = 3-2*M
A <= CONSA - ('0' & M(19 downto 11)) ;
end if ;
end process ;
-----------------------------------------------------------
-- 2nd stage --
-----------------------------------------------------------
REVX_1ND : process( M, A )
variable B1 : std_logic_vector(19 downto 0); -- M(10bit)*A(10bit) XX.XX....
variable B2 : std_logic_vector(11 downto 0); -- 2-B1(12bit) X.XX....
variable B3 : std_logic_vector(21 downto 0); -- A(10bit)*B2(12bit) XXX.XX....
begin
if( A = "0000000000" ) then
B <= (others=>'0') ;
else
B1 := M(19 downto 10) * A ;
B2 := CONSX(30 downto 19) - B1(18 downto 7) ;
B3 := B2 * A ;
B <= B3(20 downto 5) ;
end if ;
end process ;
-----------------------------------------------------------
-- 3rd stage --
-----------------------------------------------------------
REVX_3RD : process( M, B )
variable C1 : std_logic_vector(31 downto 0); -- M(16bit)*B(16bit) XX.XX...
variable C2 : std_logic_vector(19 downto 0); -- 2-C1(20bit) X.XX...
variable C3 : std_logic_vector(35 downto 0); -- B(16bit)*C2(20bit) XXX.XX...
begin
if( B = "0000000000000000" ) then
C <= (others=>'0') ;
else
C1 := B * M(19 downto 4) ;
C2 := CONSX(30 downto 11) - C1(30 downto 11) ;
C3 := C2 * B ;
C <= C3(34 downto 11) ;
end if ;
end process ;
-----------------------------------------------------------
-- 4th stage --
-----------------------------------------------------------
REVX_4TH : process( M, C )
variable D1 : std_logic_vector(39 downto 0); -- M(20bit)*C(20bit) XX.XX...
variable D2 : std_logic_vector(23 downto 0); -- 2-D1(24bit) X.XX...
variable D3 : std_logic_vector(43 downto 0); -- C(20bit)*D2(24bit) XXX.XX...
begin
if( C = "000000000000000000000000" ) then
D <= (others=>'0') ;
else
D1 := C(23 downto 4) * M ;
D2 := CONSX(30 downto 7) - D1(38 downto 15) ;
D3 := D2 * C(23 downto 4) ;
D <= D3(42 downto 19) ;
end if ;
end process ;
ZN <= N ;
--ZM <= A & "0000000000" ;
--ZM <= B & "0000" ;
--ZM <= C(23 downto 4) ;
ZM <= D(23 downto 4) ;
end RTL ;
------------------------------------------------------------------------
-- End of File --
------------------------------------------------------------------------
|
//-------------------------------------------------------------------
//
// This file is automatically generated by VHDL to Verilog Translator.
// Ver.1.08 Build Mar.6.2004
// www.sugawara-systems.com
// tech-support@sugawara-systems.com
// See Original Copyright Notice for property of the file .( somewhere in this file.)
//
//--------------------------------------------------------------------
//----------------------------------------------------------------------
// Title Reverse X (1/X) --
// File REVX.vhd --
// Entity REVX --
// rev date coded contents --
// 001 98/11/10 ueno Make Original --
//----------------------------------------------------------------------
`timescale 1ns/1ns
`define ns 1
`define us (1000*`ns)
`define ms (1000*`us)
`define sec (1000*`ms)
module revx ( x, zn, zm );
input [19:0] x ;
output [4:0] zn ;
output [19:0] zm ;
reg [19:0] revx_1nd__b1;
reg [11:0] revx_1nd__b2;
reg [21:0] revx_1nd__b3;
reg [31:0] revx_3rd__c1;
reg [19:0] revx_3rd__c2;
reg [35:0] revx_3rd__c3;
reg [39:0] revx_4th__d1;
reg [23:0] revx_4th__d2;
reg [43:0] revx_4th__d3;
reg [9:0] a;
parameter [9:0] consa=10'b1100000000;
reg [15:0] b;
reg [23:0] c;
reg [23:0] d;
parameter [31:0] consx=32'b10000000000000000000000000000000;
reg [19:0] m;
reg [4:0] n;
wire [4:0] zn;
wire [19:0] zm;
always @ (x ) begin
if ((x[19:0] === 20'b00000000000000000000))
begin
m <= {(19-0+1- 0){1'b0}};
n <= {(4-0+1- 0){1'b0}};
end
else
begin
if ((x[19:1] === 19'b0000000000000000000))
begin
m <= {x[0],19'b0000000000000000000};
n <= 5'b00001;
end
else if ((x[19:2] === 18'b000000000000000000))
begin
m <= {x[1:0],18'b000000000000000000};
n <= 5'b00010;
end
else if ((x[19:3] === 17'b00000000000000000))
begin
m <= {x[2:0],17'b00000000000000000};
n <= 5'b00011;
end
else if ((x[19:4] === 16'b0000000000000000))
begin
m <= {x[3:0],16'b0000000000000000};
n <= 5'b00100;
end
else if ((x[19:5] === 15'b000000000000000))
begin
m <= {x[4:0],15'b000000000000000};
n <= 5'b00101;
end
else if ((x[19:6] === 14'b00000000000000))
begin
m <= {x[5:0],14'b00000000000000};
n <= 5'b00110;
end
else if ((x[19:7] === 13'b0000000000000))
begin
m <= {x[6:0],13'b0000000000000};
n <= 5'b00111;
end
else if ((x[19:8] === 12'b000000000000))
begin
m <= {x[7:0],12'b000000000000};
n <= 5'b01000;
end
else if ((x[19:9] === 11'b00000000000))
begin
m <= {x[8:0],11'b00000000000};
n <= 5'b01001;
end
else if ((x[19:10] === 10'b0000000000))
begin
m <= {x[9:0],10'b0000000000};
n <= 5'b01010;
end
else if ((x[19:11] === 9'b000000000))
begin
m <= {x[10:0],9'b000000000};
n <= 5'b01011;
end
else if ((x[19:12] === 8'b00000000))
begin
m <= {x[11:0],8'b00000000};
n <= 5'b01100;
end
else if ((x[19:13] === 7'b0000000))
begin
m <= {x[12:0],7'b0000000};
n <= 5'b01101;
end
else if ((x[19:14] === 6'b000000))
begin
m <= {x[13:0],6'b000000};
n <= 5'b01110;
end
else if ((x[19:15] === 5'b00000))
begin
m <= {x[14:0],5'b00000};
n <= 5'b01111;
end
else if ((x[19:16] === 4'b0000))
begin
m <= {x[15:0],4'b0000};
n <= 5'b10000;
end
else if ((x[19:17] === 3'b000))
begin
m <= {x[16:0],3'b000};
n <= 5'b10001;
end
else if ((x[19:18] === 2'b00))
begin
m <= {x[17:0],2'b00};
n <= 5'b10010;
end
else if ((x[19] === 1'b0))
begin
m <= {x[18:0],1'b0};
n <= 5'b10011;
end
else
begin
m <= x;
n <= 5'b10100;
end
end
end //always
always @ (m ) begin
if ((m === 20'b00000000000000000000))
a <= {(9-0+1- 0){1'b0}};
else
a <= (consa - {1'b0,m[19:11]});
end //always
always @ (m or a ) begin
if ((a === 10'b0000000000))
b <= {(15-0+1- 0){1'b0}};
else
begin
revx_1nd__b1 = (m[19:10] * a);
revx_1nd__b2 = (consx[30:19] - revx_1nd__b1[18:7]);
revx_1nd__b3 = (revx_1nd__b2 * a);
b <= revx_1nd__b3[20:5];
end
end //always
always @ (m or b ) begin
if ((b === 16'b0000000000000000))
c <= {(23-0+1- 0){1'b0}};
else
begin
revx_3rd__c1 = (b * m[19:4]);
revx_3rd__c2 = (consx[30:11] - revx_3rd__c1[30:11]);
revx_3rd__c3 = (revx_3rd__c2 * b);
c <= revx_3rd__c3[34:11];
end
end //always
always @ (m or c ) begin
if ((c === 24'b000000000000000000000000))
d <= {(23-0+1- 0){1'b0}};
else
begin
revx_4th__d1 = (c[23:4] * m);
revx_4th__d2 = (consx[30:7] - revx_4th__d1[38:15]);
revx_4th__d3 = (revx_4th__d2 * c[23:4]);
d <= revx_4th__d3[42:19];
end
end //always
assign {zn}=n;
assign {zm}=d[23:4];
endmodule
|
------------------------------------------------------------------------
-- Title Logalizm X (log(X)) --
-- File LOG.vhd --
-- Entity LOG --
-- rev date coded contents --
-- 001 98/11/17 ueno Make Original --
------------------------------------------------------------------------
library ieee ;
use ieee.std_logic_1164.all ;
use ieee.std_logic_unsigned.all ;
--use IEEE.std_logic_signed.all ;
use IEEE.std_logic_arith.all ;
------------------------------------------------------------------------
-- entity --
------------------------------------------------------------------------
entity LOG is
port(
-- XXXXXXXXXXXXXXXXXXXX. Integer Value
X : in std_logic_vector(19 downto 0) ; -- Input(20bit)
-- XXXX.XXXXXXXXXXXXXXXX Fixed Point Value
Z : out std_logic_vector(19 downto 0) -- Output(20bit)
);
end LOG ;
------------------------------------------------------------------------
-- architecture --
------------------------------------------------------------------------
architecture RTL of LOG is
-- log(2)
-- .XXXXXXXXXXXXXXXX
constant LOG2V : std_logic_vector(15 downto 0) := "1011000101110010" ;
-- 1/2 = shift1
-- 1/3
constant CONS3 : std_logic_vector(15 downto 0) := "0101010101010101" ; -- 4bit
-- 1/4 = shift2
-- 1/5
-- 1/6 = 1/3&shift
-- 1/7
constant CONS5 : std_logic_vector(15 downto 0) := "0011001100110011" ; -- 7bit
constant CONS7 : std_logic_vector(15 downto 0) := "0010010010010010" ; -- 9bit
-- 1/8 = shift3
-- 1/9
-- 1/10 = 1/5&shift
-- 1/11
-- 1/12 = 1/3&shift2
-- 1/13
-- 1/14 = 1/7&shift2
-- 1/15
constant CONS9 : std_logic_vector(15 downto 0) := "0001110001110001" ; -- 11bit
constant CONS11 : std_logic_vector(15 downto 0) := "0001011101000101" ; -- 14bit
constant CONS13 : std_logic_vector(15 downto 0) := "0001001110110001" ; -- 16bit
constant CONS15 : std_logic_vector(15 downto 0) := "0001000100010001" ; -- 18bit
--
-- .XXXXXXXXXXXXXXXX
signal Y : std_logic_vector(15 downto 0) ; -- Log( M )
--
signal F : std_logic_vector(20 downto 0) ; -- N*log(2)
signal G : std_logic_vector(20 downto 0) ; -- temp Z
--
-- 0.XXXXXXXX
signal M : std_logic_vector(19 downto 0) ; -- Mantissa
signal N : std_logic_vector(4 downto 0) ; -- Expornent
begin
--------------------------------
-- Reverse X Argolizm (X>0)
--
-- X = m x 2^n (m = 0.5~0.999999)
-- m = 1-h
-- Z = log(2)*n+log(m)
-- log(2)*n-(h+h^2/2+h^3/3+h^4/4+ ....)
--
--------------------------------
-----------------------------------------------------------
-- Initialize --
-----------------------------------------------------------
FLOT_INIT : process( X )
begin
if( X(19 downto 0) = "00000000000000000000" ) then
M <= (others=>'0') ;
N <= (others=>'0') ;
else
-- Generate M,N
if( X(19 downto 1) = "0000000000000000000" ) then
M <= X(0) & "0000000000000000000" ;
N <= "00001" ;
elsif( X(19 downto 2) = "000000000000000000" ) then
M <= X(1 downto 0) & "000000000000000000" ;
N <= "00010" ;
elsif( X(19 downto 3) = "00000000000000000" ) then
M <= X(2 downto 0) & "00000000000000000" ;
N <= "00011" ;
elsif( X(19 downto 4) = "0000000000000000" ) then
M <= X(3 downto 0) & "0000000000000000" ;
N <= "00100" ;
elsif( X(19 downto 5) = "000000000000000" ) then
M <= X(4 downto 0) & "000000000000000" ;
N <= "00101" ;
elsif( X(19 downto 6) = "00000000000000" ) then
M <= X(5 downto 0) & "00000000000000" ;
N <= "00110" ;
elsif( X(19 downto 7) = "0000000000000" ) then
M <= X(6 downto 0) & "0000000000000" ;
N <= "00111" ;
elsif( X(19 downto 8) = "000000000000" ) then
M <= X(7 downto 0) & "000000000000" ;
N <= "01000" ;
elsif( X(19 downto 9) = "00000000000" ) then
M <= X(8 downto 0) & "00000000000" ;
N <= "01001" ;
elsif( X(19 downto 10) = "0000000000" ) then
M <= X(9 downto 0) & "0000000000" ;
N <= "01010" ;
elsif( X(19 downto 11) = "000000000" ) then
M <= X(10 downto 0) & "000000000" ;
N <= "01011" ;
elsif( X(19 downto 12) = "00000000" ) then
M <= X(11 downto 0) & "00000000" ;
N <= "01100" ;
elsif( X(19 downto 13) = "0000000" ) then
M <= X(12 downto 0) & "0000000" ;
N <= "01101" ;
elsif( X(19 downto 14) = "000000" ) then
M <= X(13 downto 0) & "000000" ;
N <= "01110" ;
elsif( X(19 downto 15) = "00000" ) then
M <= X(14 downto 0) & "00000" ;
N <= "01111" ;
elsif( X(19 downto 16) = "0000" ) then
M <= X(15 downto 0) & "0000" ;
N <= "10000" ;
elsif( X(19 downto 17) = "000" ) then
M <= X(16 downto 0) & "000" ;
N <= "10001" ;
elsif( X(19 downto 18) = "00" ) then
M <= X(17 downto 0) & "00" ;
N <= "10010" ;
elsif( X(19) = '0' ) then
M <= X(18 downto 0) & '0' ;
N <= "10011" ;
else
M <= X ;
N <= "10100" ;
end if ;
end if ;
end process ;
-----------------------------------------------------------
-- logalizm calculate --
-----------------------------------------------------------
LOG_CONV : process( M )
variable TMP : std_logic_vector(19 downto 0); -- 1-m
variable H : std_logic_vector(15 downto 0); -- 1-m
variable B1 : std_logic_vector(15 downto 0); -- H
variable B2 : std_logic_vector(31 downto 0); -- H^2
variable B3 : std_logic_vector(31 downto 0); -- H^3
variable B4 : std_logic_vector(31 downto 0); -- H^4
variable B5 : std_logic_vector(31 downto 0); --
variable B6 : std_logic_vector(31 downto 0); --
variable B7 : std_logic_vector(31 downto 0); --
variable B8 : std_logic_vector(31 downto 0); --
variable B9 : std_logic_vector(31 downto 0); --
variable B10 : std_logic_vector(31 downto 0); --
variable B11 : std_logic_vector(31 downto 0); --
variable B12 : std_logic_vector(31 downto 0); --
variable B13 : std_logic_vector(31 downto 0); --
variable C1 : std_logic_vector(15 downto 0); -- H
variable C2 : std_logic_vector(15 downto 0); -- H^2
variable C3 : std_logic_vector(15 downto 0); -- H^3
variable C4 : std_logic_vector(15 downto 0); -- H^4
variable C5 : std_logic_vector(15 downto 0); --
variable C6 : std_logic_vector(15 downto 0); --
variable C7 : std_logic_vector(15 downto 0); --
variable C8 : std_logic_vector(15 downto 0); --
variable C9 : std_logic_vector(15 downto 0); --
variable C10 : std_logic_vector(15 downto 0); --
variable C11 : std_logic_vector(15 downto 0); --
variable C12 : std_logic_vector(15 downto 0); --
variable C13 : std_logic_vector(15 downto 0); --
variable D : std_logic_vector(15 downto 0); --
begin
if( M = "00000000000000000000" ) then
Y <= (others=>'0') ;
else
-- TMP = -M
TMP := "00000000000000000000" - M ;
H := TMP(19 downto 4) ;
-- BEKI
B1 := H ;
B2 := H*H ;
B3 := B2(31 downto 16)*H ;
B4 := B2(31 downto 16)*B2(31 downto 16) ;
B5 := B4(31 downto 16)*H ;
B6 := B4(31 downto 16)*B2(31 downto 16) ;
B7 := B4(31 downto 16)*B3(31 downto 16) ;
B8 := B4(31 downto 16)*B4(31 downto 16) ;
B9 := B8(31 downto 16)*H ;
B10 := B8(31 downto 16)*B2(31 downto 16) ;
B11 := B8(31 downto 16)*B3(31 downto 16) ;
B12 := B8(31 downto 16)*B4(31 downto 16) ;
B13 := B8(31 downto 16)*B5(31 downto 16) ;
-- KEISU
C1 := B1 ;
C2 := '0' & B2(31 downto 17) ;
B3 := B3(31 downto 16)*CONS3 ;
C3 := B3(31 downto 16) ;
C4 := "00" & B4(31 downto 18) ;
B5 := B5(31 downto 16)*CONS5 ;
C5 := B5(31 downto 16) ;
B6 := B6(31 downto 16)*CONS3 ;
C6 := '0' & B6(31 downto 17) ;
B7 := B7(31 downto 16)*CONS7 ;
C7 := B7(31 downto 16) ;
C8 := "000" & B8(31 downto 19) ;
B9 := B9(31 downto 16)*CONS9 ;
C9 := B9(31 downto 16) ;
B10 := B10(31 downto 16)*CONS5 ;
C10 := '0' & B10(31 downto 17) ;
B11 := B11(31 downto 16)*CONS11 ;
C11 := B11(31 downto 16) ;
B12 := B12(31 downto 16)*CONS3 ;
C12 := "00" & B12(31 downto 18) ;
B13 := B13(31 downto 16)*CONS13 ;
C13 := B13(31 downto 16) ;
-- KASAN
D := C1+C2+C3+C4+C5+C6+C7+C8+C9+C10+C11+C12+C13 ;
-- KEKKA
Y <= D ;
end if ;
end process ;
-----------------------------------------------------------
-- output calculate --
-----------------------------------------------------------
--Feb.14.2005 TAK
OUTPUT_CALC : process( M,G) -- N, Y )
begin
if( M = "00000000000000000000" ) then
Z <= (others=>'0') ;
else
-- F <= N * LOG2V ;
-- G <= F - ("00000" & Y) ;
Z <= G(19 downto 0) ;
end if ;
end process ;
F <= N * LOG2V ;
G <= F - ("00000" & Y) ;
end RTL ;
------------------------------------------------------------------------
-- End of File --
------------------------------------------------------------------------
|
//-------------------------------------------------------------------
//
// This file is automatically generated by VHDL to Verilog Translator.
// Ver.1.08 Build Mar.6.2004
// www.sugawara-systems.com
// tech-support@sugawara-systems.com
// See Original Copyright Notice for property of the file .( somewhere in this file.)
//
//--------------------------------------------------------------------
//----------------------------------------------------------------------
// Title Logalizm X (log(X)) --
// File LOG.vhd --
// Entity LOG --
// rev date coded contents --
// 001 98/11/17 ueno Make Original --
//----------------------------------------------------------------------
`timescale 1ns/1ns
`define ns 1
`define us (1000*`ns)
`define ms (1000*`us)
`define sec (1000*`ms)
module log ( x, z );
input [19:0] x ;
output [19:0] z ;
reg [19:0] log_conv__tmp;
reg [15:0] log_conv__h;
reg [15:0] log_conv__b1;
reg [31:0] log_conv__b2;
reg [31:0] log_conv__b3;
reg [31:0] log_conv__b4;
reg [31:0] log_conv__b5;
reg [31:0] log_conv__b6;
reg [31:0] log_conv__b7;
reg [31:0] log_conv__b8;
reg [31:0] log_conv__b9;
reg [31:0] log_conv__b10;
reg [31:0] log_conv__b11;
reg [31:0] log_conv__b12;
reg [31:0] log_conv__b13;
reg [15:0] log_conv__c1;
reg [15:0] log_conv__c2;
reg [15:0] log_conv__c3;
reg [15:0] log_conv__c4;
reg [15:0] log_conv__c5;
reg [15:0] log_conv__c6;
reg [15:0] log_conv__c7;
reg [15:0] log_conv__c8;
reg [15:0] log_conv__c9;
reg [15:0] log_conv__c10;
reg [15:0] log_conv__c11;
reg [15:0] log_conv__c12;
reg [15:0] log_conv__c13;
reg [15:0] log_conv__d;
parameter [15:0] log2v=16'b1011000101110010;
parameter [15:0] cons3=16'b0101010101010101;
parameter [15:0] cons5=16'b0011001100110011;
parameter [15:0] cons7=16'b0010010010010010;
parameter [15:0] cons9=16'b0001110001110001;
parameter [15:0] cons11=16'b0001011101000101;
parameter [15:0] cons13=16'b0001001110110001;
parameter [15:0] cons15=16'b0001000100010001;
reg [15:0] y;
wire [20:0] f;
wire [20:0] g;
reg [19:0] m;
reg [4:0] n;
reg [19:0] z;
always @ (x ) begin
if ((x[19:0] === 20'b00000000000000000000))
begin
m <= {(19-0+1- 0){1'b0}};
n <= {(4-0+1- 0){1'b0}};
end
else
begin
if ((x[19:1] === 19'b0000000000000000000))
begin
m <= {x[0],19'b0000000000000000000};
n <= 5'b00001;
end
else if ((x[19:2] === 18'b000000000000000000))
begin
m <= {x[1:0],18'b000000000000000000};
n <= 5'b00010;
end
else if ((x[19:3] === 17'b00000000000000000))
begin
m <= {x[2:0],17'b00000000000000000};
n <= 5'b00011;
end
else if ((x[19:4] === 16'b0000000000000000))
begin
m <= {x[3:0],16'b0000000000000000};
n <= 5'b00100;
end
else if ((x[19:5] === 15'b000000000000000))
begin
m <= {x[4:0],15'b000000000000000};
n <= 5'b00101;
end
else if ((x[19:6] === 14'b00000000000000))
begin
m <= {x[5:0],14'b00000000000000};
n <= 5'b00110;
end
else if ((x[19:7] === 13'b0000000000000))
begin
m <= {x[6:0],13'b0000000000000};
n <= 5'b00111;
end
else if ((x[19:8] === 12'b000000000000))
begin
m <= {x[7:0],12'b000000000000};
n <= 5'b01000;
end
else if ((x[19:9] === 11'b00000000000))
begin
m <= {x[8:0],11'b00000000000};
n <= 5'b01001;
end
else if ((x[19:10] === 10'b0000000000))
begin
m <= {x[9:0],10'b0000000000};
n <= 5'b01010;
end
else if ((x[19:11] === 9'b000000000))
begin
m <= {x[10:0],9'b000000000};
n <= 5'b01011;
end
else if ((x[19:12] === 8'b00000000))
begin
m <= {x[11:0],8'b00000000};
n <= 5'b01100;
end
else if ((x[19:13] === 7'b0000000))
begin
m <= {x[12:0],7'b0000000};
n <= 5'b01101;
end
else if ((x[19:14] === 6'b000000))
begin
m <= {x[13:0],6'b000000};
n <= 5'b01110;
end
else if ((x[19:15] === 5'b00000))
begin
m <= {x[14:0],5'b00000};
n <= 5'b01111;
end
else if ((x[19:16] === 4'b0000))
begin
m <= {x[15:0],4'b0000};
n <= 5'b10000;
end
else if ((x[19:17] === 3'b000))
begin
m <= {x[16:0],3'b000};
n <= 5'b10001;
end
else if ((x[19:18] === 2'b00))
begin
m <= {x[17:0],2'b00};
n <= 5'b10010;
end
else if ((x[19] === 1'b0))
begin
m <= {x[18:0],1'b0};
n <= 5'b10011;
end
else
begin
m <= x;
n <= 5'b10100;
end
end
end //always
always @ (m ) begin
if ((m === 20'b00000000000000000000))
y <= {(15-0+1- 0){1'b0}};
else
begin
log_conv__tmp = (20'b00000000000000000000 - m);
log_conv__h = log_conv__tmp[19:4];
log_conv__b1 = log_conv__h;
log_conv__b2 = (log_conv__h * log_conv__h);
log_conv__b3 = (log_conv__b2[31:16] * log_conv__h);
log_conv__b4 = (log_conv__b2[31:16] * log_conv__b2[31:16]);
log_conv__b5 = (log_conv__b4[31:16] * log_conv__h);
log_conv__b6 = (log_conv__b4[31:16] * log_conv__b2[31:16]);
log_conv__b7 = (log_conv__b4[31:16] * log_conv__b3[31:16]);
log_conv__b8 = (log_conv__b4[31:16] * log_conv__b4[31:16]);
log_conv__b9 = (log_conv__b8[31:16] * log_conv__h);
log_conv__b10 = (log_conv__b8[31:16] * log_conv__b2[31:16]);
log_conv__b11 = (log_conv__b8[31:16] * log_conv__b3[31:16]);
log_conv__b12 = (log_conv__b8[31:16] * log_conv__b4[31:16]);
log_conv__b13 = (log_conv__b8[31:16] * log_conv__b5[31:16]);
log_conv__c1 = log_conv__b1;
log_conv__c2 = {1'b0,log_conv__b2[31:17]};
log_conv__b3 = (log_conv__b3[31:16] * cons3);
log_conv__c3 = log_conv__b3[31:16];
log_conv__c4 = {2'b00,log_conv__b4[31:18]};
log_conv__b5 = (log_conv__b5[31:16] * cons5);
log_conv__c5 = log_conv__b5[31:16];
log_conv__b6 = (log_conv__b6[31:16] * cons3);
log_conv__c6 = {1'b0,log_conv__b6[31:17]};
log_conv__b7 = (log_conv__b7[31:16] * cons7);
log_conv__c7 = log_conv__b7[31:16];
log_conv__c8 = {3'b000,log_conv__b8[31:19]};
log_conv__b9 = (log_conv__b9[31:16] * cons9);
log_conv__c9 = log_conv__b9[31:16];
log_conv__b10 = (log_conv__b10[31:16] * cons5);
log_conv__c10 = {1'b0,log_conv__b10[31:17]};
log_conv__b11 = (log_conv__b11[31:16] * cons11);
log_conv__c11 = log_conv__b11[31:16];
log_conv__b12 = (log_conv__b12[31:16] * cons3);
log_conv__c12 = {2'b00,log_conv__b12[31:18]};
log_conv__b13 = (log_conv__b13[31:16] * cons13);
log_conv__c13 = log_conv__b13[31:16];
log_conv__d = ((((((((((((log_conv__c1 + log_conv__c2) + log_conv__c3) + log_conv__c4) + log_conv__c5) + log_conv__c6) + log_conv__c7) + log_conv__c8) + log_conv__c9) + log_conv__c10) + log_conv__c11) + log_conv__c12) + log_conv__c13);
y <= log_conv__d;
end
end //always
always @ (m or g ) begin
if ((m === 20'b00000000000000000000))
z <= {(19-0+1- 0){1'b0}};
else
z <= g[19:0];
end //always
assign {f}=(n * log2v);
assign {g}=(f - {5'b00000,y});
endmodule
|
//Feb.13.2005
//Feb.15.2005
//Tak.Sugawara
module cordic_bench_test;
parameter cos_sin_mode=1'b0,atan_mode=1'b1;
parameter integer bit_precision=10;//11 fails
parameter integer atan_precision=11;//12 fails
parameter integer precision=bit_precision;//
parameter real allowable_error=1.0/(2**precision);
parameter real allowable_error_atan=1.0/(2**atan_precision);
parameter integer scale_power=14;//bit
parameter integer scale=2**scale_power;//16384
parameter real max_test_angle_degree=91;//max of 100 degree
reg [15:0] in_x=0 ;
reg [15:0] in_y=0 ;
reg signed [15:0] in_angle=0 ;
reg in_start=0;
reg in_mode=cos_sin_mode;
reg clk=0;
reg enable=0;
reg xrst=0;
wire out_finish;
wire signed [15:0] out_x ;
wire signed [15:0] out_y ;
wire signed [15:0] out_z ;
//
real in_angle_r;
real max_in_angle_r;//
real hard_sin,hard_cos;//
real max_angle_r;
real h_sin_limit,l_sin_limit;
real h_cos_limit,l_cos_limit;
integer i;
real work,work1;
real x_r,y_r,hard_z,angle_z;
always #10 clk=~clk;
cordic dut ( in_x, in_y, in_angle, in_start, in_mode, clk, enable, xrst, out_finish, out_x, out_y, out_z );
initial begin
//sin/cos test
//test 0->90degree
repeat(2) @(posedge clk);
@(negedge clk);
xrst=1;
in_start=1;
enable=1;
begin :for_loop1
for (i=0; 1;i=i+1) begin
in_angle=i;
@(negedge clk) in_start=0;
repeat(3) @(negedge clk);
wait (out_finish);//wait hardware calculation
in_angle_r=$itor(in_angle)/$itor(scale);
hard_sin=$itor(out_y)/$itor(scale);
hard_cos=$itor(out_x)/$itor(scale);
work=$sin(in_angle_r);
work1=allowable_error;
h_sin_limit=$sin(in_angle_r)+allowable_error;//evaluate as output-bit-precision
l_sin_limit=$sin(in_angle_r)-allowable_error;
h_cos_limit=$cos(in_angle_r)+allowable_error;
l_cos_limit=$cos(in_angle_r)-allowable_error;
if (h_sin_limit < hard_sin)begin
$display("sin max error detected %g %g",h_sin_limit,hard_sin);
$stop;
end
if (l_sin_limit > hard_sin) begin
$display("sin min error detected %g %g",l_sin_limit,hard_sin);
end
if (h_cos_limit < hard_cos)begin
$display("cos max error detected %g %g",h_cos_limit,hard_sin);
$stop;
end
if (l_cos_limit > hard_cos) begin
$display("cos min error detected %g %g",l_cos_limit,hard_sin);
end
if (i%1000==0)
$display("i=%d in_angle_r=%g sin=%g hadware_result=%g",i,in_angle_r,$sin(in_angle_r),hard_sin);
max_angle_r=max_test_angle_degree/180.*$M_PI;
if (max_angle_r < in_angle_r) disable for_loop1;//exit test loop
@(negedge clk) in_start=1;
end
end //for loop
//test 0->-90degree
@(negedge clk);
in_start=1;
enable=1;
begin :for_loop2
for (i=0; 1;i=i+1) begin
in_angle=-i;
@(negedge clk) in_start=0;
repeat(3) @(negedge clk);
wait (out_finish);//wait hardware calculation
in_angle_r=$itor(in_angle)/$itor(scale);
hard_sin=$itor(out_y)/$itor(scale);
hard_cos=$itor(out_x)/$itor(scale);
work=$sin(in_angle_r);
work1=allowable_error;
h_sin_limit=$sin(in_angle_r)+allowable_error;//evaluate as output-bit-precision
l_sin_limit=$sin(in_angle_r)-allowable_error;
h_cos_limit=$cos(in_angle_r)+allowable_error;
l_cos_limit=$cos(in_angle_r)-allowable_error;
if (h_sin_limit < hard_sin)begin
$display("sin max error detected %g %g",h_sin_limit,hard_sin);
$stop;
end
if (l_sin_limit > hard_sin) begin
$display("sin min error detected %g %g",l_sin_limit,hard_sin);
end
if (h_cos_limit < hard_cos)begin
$display("cos max error detected %g %g",h_cos_limit,hard_sin);
$stop;
end
if (l_cos_limit > hard_cos) begin
$display("cos min error detected %g %g",l_cos_limit,hard_sin);
end
if (i%1000==0)
$display("i=%d in_angle_r=%g sin=%g hadware_result=%g",i,in_angle_r,$sin(in_angle_r),hard_sin);
max_angle_r=max_test_angle_degree/180.*$M_PI;
if (-max_angle_r > in_angle_r) disable for_loop2;//exit test loop
@(negedge clk) in_start=1;
end
end //for loop
$display("Cordic sin/cos test passed");
//atan (y/x)
//test scheme
// 1>=x>0 assuming x**2+y**2=1 y=sqrt(1-xx*2);
//
xrst=0;
repeat(2) @(negedge clk);
@(negedge clk);
in_start=1;
enable=1;
xrst=1;
in_mode=atan_mode;
for (i=0;i<= scale;i=i+1) begin
in_x=i;//Start, with given in_x and in_y
x_r=$itor(i)/scale;
work=1.0-x_r**2;
y_r=$sqrt(work);
work1=y_r*scale;
in_y=$rtoi(work1);
@(negedge clk) in_start=0;//deassert _instart
repeat(3) @(negedge clk);
wait (out_finish);//wait hardware calculation
@(negedge clk);
hard_z=$itor(out_z)/scale;//get hardware result.
if (i==0) angle_z=$M_PI/2.0;
else if (i==scale) angle_z=0.0;
else angle_z=$atan(y_r/x_r);
if (hard_z > angle_z+allowable_error_atan) begin
$display("Error Detected atan max");
$stop;//assert(0);
end
if (hard_z < angle_z-allowable_error_atan) begin
$display("Error Detected atan min");
$stop;//assert(0);
end
@(negedge clk) in_start=1;
end
$display("atan(y/x) test passed");
$finish;
end
endmodule
|
| i= 0 in_angle_r=0 sin=0 hadware_result=0.000244141 i= 1000 in_angle_r=0.0610352 sin=0.0609973 hadware_result=0.0609131 i= 2000 in_angle_r=0.12207 sin=0.121767 hadware_result=0.121948 i= 3000 in_angle_r=0.183105 sin=0.182084 hadware_result=0.18219 i= 4000 in_angle_r=0.244141 sin=0.241723 hadware_result=0.241943 i= 5000 in_angle_r=0.305176 sin=0.300461 hadware_result=0.300415 i= 6000 in_angle_r=0.366211 sin=0.35808 hadware_result=0.357971 i= 7000 in_angle_r=0.427246 sin=0.414366 hadware_result=0.414246 i= 8000 in_angle_r=0.488281 sin=0.469109 hadware_result=0.469177 i= 9000 in_angle_r=0.549316 sin=0.522104 hadware_result=0.521973 i= 10000 in_angle_r=0.610352 sin=0.573156 hadware_result=0.573181 i= 11000 in_angle_r=0.671387 sin=0.622072 hadware_result=0.622009 i= 12000 in_angle_r=0.732422 sin=0.668672 hadware_result=0.668701 i= 13000 in_angle_r=0.793457 sin=0.712782 hadware_result=0.712769 i= 14000 in_angle_r=0.854492 sin=0.754238 hadware_result=0.754395 i= 15000 in_angle_r=0.915527 sin=0.792884 hadware_result=0.79303 i= 16000 in_angle_r=0.976563 sin=0.828578 hadware_result=0.828491 i= 17000 in_angle_r=1.0376 sin=0.861186 hadware_result=0.861328 i= 18000 in_angle_r=1.09863 sin=0.890586 hadware_result=0.890686 i= 19000 in_angle_r=1.15967 sin=0.91667 hadware_result=0.91687 i= 20000 in_angle_r=1.2207 sin=0.939341 hadware_result=0.93927 i= 21000 in_angle_r=1.28174 sin=0.958513 hadware_result=0.958435 i= 22000 in_angle_r=1.34277 sin=0.974115 hadware_result=0.974121 i= 23000 in_angle_r=1.40381 sin=0.98609 hadware_result=0.986145 i= 24000 in_angle_r=1.46484 sin=0.994392 hadware_result=0.994324 i= 25000 in_angle_r=1.52588 sin=0.998991 hadware_result=0.999023 i= 26000 in_angle_r=1.58691 sin=0.99987 hadware_result=0.999573 i= 0 in_angle_r=0 sin=0 hadware_result=0.000244141 i= 1000 in_angle_r=-0.0610352 sin=-0.0609973 hadware_result=-0.0606689 i= 2000 in_angle_r=-0.12207 sin=-0.121767 hadware_result=-0.121582 i= 3000 in_angle_r=-0.183105 sin=-0.182084 hadware_result=-0.181946 i= 4000 in_angle_r=-0.244141 sin=-0.241723 hadware_result=-0.241943 i= 5000 in_angle_r=-0.305176 sin=-0.300461 hadware_result=-0.300415 i= 6000 in_angle_r=-0.366211 sin=-0.35808 hadware_result=-0.358032 i= 7000 in_angle_r=-0.427246 sin=-0.414366 hadware_result=-0.414307 i= 8000 in_angle_r=-0.488281 sin=-0.469109 hadware_result=-0.468872 i= 9000 in_angle_r=-0.549316 sin=-0.522104 hadware_result=-0.52179 i= 10000 in_angle_r=-0.610352 sin=-0.573156 hadware_result=-0.573181 i= 11000 in_angle_r=-0.671387 sin=-0.622072 hadware_result=-0.622009 i= 12000 in_angle_r=-0.732422 sin=-0.668672 hadware_result=-0.668701 i= 13000 in_angle_r=-0.793457 sin=-0.712782 hadware_result=-0.712769 i= 14000 in_angle_r=-0.854492 sin=-0.754238 hadware_result=-0.754395 i= 15000 in_angle_r=-0.915527 sin=-0.792884 hadware_result=-0.792908 i= 16000 in_angle_r=-0.976563 sin=-0.828578 hadware_result=-0.828369 i= 17000 in_angle_r=-1.0376 sin=-0.861186 hadware_result=-0.861206 i= 18000 in_angle_r=-1.09863 sin=-0.890586 hadware_result=-0.890564 i= 19000 in_angle_r=-1.15967 sin=-0.91667 hadware_result=-0.91687 i= 20000 in_angle_r=-1.2207 sin=-0.939341 hadware_result=-0.93927 i= 21000 in_angle_r=-1.28174 sin=-0.958513 hadware_result=-0.958435 i= 22000 in_angle_r=-1.34277 sin=-0.974115 hadware_result=-0.974121 i= 23000 in_angle_r=-1.40381 sin=-0.98609 hadware_result=-0.986023 i= 24000 in_angle_r=-1.46484 sin=-0.994392 hadware_result=-0.994324 i= 25000 in_angle_r=-1.52588 sin=-0.998991 hadware_result=-0.999023 i= 26000 in_angle_r=-1.58691 sin=-0.99987 hadware_result=-0.999451 Cordic sin/cos test passed atan(y/x) test passed |
|---|
------------------------------------------------------------------------
-- Title CORDIC calculater sin(x), cos(x), atan(y/x) --
-- File CORDIC.vhd --
-- Entity CORDIC --
-- rev date coded contents --
-- 001 99/01/06 ueno Make Original --
------------------------------------------------------------------------
library ieee ;
use ieee.std_logic_1164.all ;
use ieee.std_logic_unsigned.all ;
--use IEEE.std_logic_signed.all ;
--use IEEE.std_logic_arith.all ;
------------------------------------------------------------------------
-- entity --
------------------------------------------------------------------------
entity CORDIC is
port(
-- Input/Output Data format = Fixed Point Value
-- range -1.99994 to 1.99994 2's complement
-- 15 14 . 13 12 11 10 09 08 07 06 05 04 03 02 01 00
-- Sign ^point
--
IN_X : in std_logic_vector(15 downto 0) ; -- atan(y/X) -0.15 to 1.00
IN_Y : in std_logic_vector(15 downto 0) ; -- atan(Y/x) -1.00 to 1.00
IN_ANGLE : in std_logic_vector(15 downto 0) ; -- angle(thita) -1.74 to 1.74
IN_START : in std_logic ; -- convert start
IN_MODE : in std_logic ; -- 1=atan/0=sin,cos
CLK : in std_logic ; -- System Clock
ENABLE : in std_logic ; -- Clock Enable
XRST : in std_logic ; -- Reset
OUT_FINISH : out std_logic ; -- Convert end
OUT_X : out std_logic_vector(15 downto 0) ; -- Calculate X
OUT_Y : out std_logic_vector(15 downto 0) ; -- Calculate Y
OUT_Z : out std_logic_vector(15 downto 0) -- Calculate Z
);
end CORDIC ;
------------------------------------------------------------------------
-- architecture --
------------------------------------------------------------------------
architecture RTL of CORDIC is
--constant ENABLE : std_logic := '1' ;
-----------------------------------------------------------
-- Constants --
-----------------------------------------------------------
constant VAL0 : std_logic_vector(15 downto 0) := "0000000000000000" ; -- 0.000000000
constant VALX : std_logic_vector(15 downto 0) := "0010011011011101" ; -- 0.607252935
constant ATAN00 : std_logic_vector(15 downto 0) := "0011001001000100" ; -- atan(1/1)
constant ATAN01 : std_logic_vector(15 downto 0) := "0001110110101100" ; -- atan(1/2)
constant ATAN02 : std_logic_vector(15 downto 0) := "0000111110101110" ; -- atan(1/4)
constant ATAN03 : std_logic_vector(15 downto 0) := "0000011111110101" ; -- atan(1/8)
constant ATAN04 : std_logic_vector(15 downto 0) := "0000001111111111" ; -- atan(1/16)
constant ATAN05 : std_logic_vector(15 downto 0) := "0000001000000000" ; -- atan(1/32)
constant ATAN06 : std_logic_vector(15 downto 0) := "0000000100000000" ; -- atan(1/64)
constant ATAN07 : std_logic_vector(15 downto 0) := "0000000010000000" ; -- atan(1/128)
constant ATAN08 : std_logic_vector(15 downto 0) := "0000000001000000" ; -- atan(1/256)
constant ATAN09 : std_logic_vector(15 downto 0) := "0000000000100000" ; -- atan(1/512)
constant ATAN10 : std_logic_vector(15 downto 0) := "0000000000010000" ; -- atan(1/1024)
constant ATAN11 : std_logic_vector(15 downto 0) := "0000000000001000" ; -- atan(1/2048)
constant ATAN12 : std_logic_vector(15 downto 0) := "0000000000000100" ; -- atan(1/4096)
constant ATAN13 : std_logic_vector(15 downto 0) := "0000000000000010" ; -- atan(1/8192)
constant ATAN14 : std_logic_vector(15 downto 0) := "0000000000000001" ; -- atan(1/16384)
constant ATAN15 : std_logic_vector(15 downto 0) := "0000000000000000" ; -- atan(1/32768)
-----------------------------------------------------------
-- Signals --
-----------------------------------------------------------
signal REG_X : std_logic_vector(15 downto 0) ; -- Xn Register
signal REG_Y : std_logic_vector(15 downto 0) ; -- Yn Register
signal REG_Z : std_logic_vector(15 downto 0) ; -- Zn Register
signal REG_J : std_logic_vector(3 downto 0) ; -- 0 to 15 counter
signal AX : std_logic_vector(15 downto 0) ; -- Ballel Shift X
signal BX : std_logic_vector(15 downto 0) ; -- Ballel Shift X
signal CX : std_logic_vector(15 downto 0) ; -- Ballel Shift X
signal DX : std_logic_vector(15 downto 0) ; -- Ballel Shift X
signal AY : std_logic_vector(15 downto 0) ; -- Ballel Shift Y
signal BY : std_logic_vector(15 downto 0) ; -- Ballel Shift Y
signal CY : std_logic_vector(15 downto 0) ; -- Ballel Shift Y
signal DY : std_logic_vector(15 downto 0) ; -- Ballel Shift Y
signal TAB_Z : std_logic_vector(15 downto 0) ; -- Table Select Z
signal INIT_LOAD : std_logic ; -- X,Y,Z Initialize
signal NOW_CONVERT : std_logic ; -- Now Conveting for CORDIC
signal ADD_SUB : std_logic ; -- Next Calculate '1'=ADD/'0'=SUB
-----------------------------------------------------------
-- Architectures --
-----------------------------------------------------------
begin
-----------------------------------------------------------
-- Flag Control --
-----------------------------------------------------------
INIT_FLAG : process( CLK, XRST )
begin
if( XRST='0' ) then
INIT_LOAD <= '0' ;
elsif( CLK'event and CLK='1' ) then
if( ENABLE='1' ) then
if( IN_START='1' and INIT_LOAD='0' and NOW_CONVERT='0' ) then
INIT_LOAD <= '1' ;
else
INIT_LOAD <= '0' ;
end if ;
end if ;
end if ;
end process ;
CONVERT_FLAG : process( CLK, XRST )
begin
if( XRST='0' ) then
NOW_CONVERT <= '0' ;
elsif( CLK'event and CLK='1' ) then
if( ENABLE='1' ) then
if( INIT_LOAD='1' ) then
NOW_CONVERT <= '1' ;
elsif( REG_J="1111" ) then
NOW_CONVERT <= '0' ;
end if ;
end if ;
end if ;
end process ;
-----------------------------------------------------------
-- Sequence Counter --
-----------------------------------------------------------
COUNTER_GEN : process( CLK, XRST )
begin
if( XRST='0' ) then
REG_J <= "0000" ;
elsif( CLK'event and CLK='1' ) then
if( ENABLE='1' ) then
if( NOW_CONVERT='1' ) then
REG_J <= REG_J + 1 ;
end if ;
end if ;
end if ;
end process ;
-----------------------------------------------------------
-- ADD/SUB Flag --
-----------------------------------------------------------
SELECT_ADD_SUB : ADD_SUB <= not REG_Y(15) when IN_MODE='1' else REG_Z(15) ;
-----------------------------------------------------------
-- Ballel Shifter --
-----------------------------------------------------------
BALLEL_AX : process( REG_X, REG_J )
begin
if( REG_J(3)='1' ) then
AX <= REG_X(15) & REG_X(15) & REG_X(15) & REG_X(15) & REG_X(15) & REG_X(15) & REG_X(15) & REG_X(15) & REG_X(15 downto 8);
else
AX <= REG_X ;
end if ;
end process ;
BALLEL_BX : process( AX, REG_J )
begin
if( REG_J(2)='1' ) then
BX <= AX(15) & AX(15) & AX(15) & AX(15) & AX(15 downto 4);
else
BX <= AX ;
end if ;
end process ;
BALLEL_CX : process( BX, REG_J )
begin
if( REG_J(1)='1' ) then
CX <= BX(15) & BX(15) & BX(15 downto 2);
else
CX <= BX ;
end if ;
end process ;
BALLEL_DX : process( CX, REG_J )
begin
if( REG_J(0)='1' ) then
DX <= CX(15) & CX(15 downto 1);
else
DX <= CX ;
end if ;
end process ;
BALLEL_AY : process( REG_Y, REG_J )
begin
if( REG_J(3)='1' ) then
AY <= REG_Y(15) & REG_Y(15) & REG_Y(15) & REG_Y(15) & REG_Y(15) & REG_Y(15) & REG_Y(15) & REG_Y(15) & REG_Y(15 downto 8);
else
AY <= REG_Y ;
end if ;
end process ;
BALLEL_BY : process( AY, REG_J )
begin
if( REG_J(2)='1' ) then
BY <= AY(15) & AY(15) & AY(15) & AY(15) & AY(15 downto 4);
else
BY <= AY ;
end if ;
end process ;
BALLEL_CY : process( BY, REG_J )
begin
if( REG_J(1)='1' ) then
CY <= BY(15) & BY(15) & BY(15 downto 2);
else
CY <= BY ;
end if ;
end process ;
BALLEL_DY : process( CY, REG_J )
begin
if( REG_J(0)='1' ) then
DY <= CY(15) & CY(15 downto 1);
else
DY <= CY ;
end if ;
end process ;
TABLE_Z : process( REG_J )
begin
case REG_J is
when "0000" => TAB_Z <= ATAN00 ;
when "0001" => TAB_Z <= ATAN01 ;
when "0010" => TAB_Z <= ATAN02 ;
when "0011" => TAB_Z <= ATAN03 ;
when "0100" => TAB_Z <= ATAN04 ;
when "0101" => TAB_Z <= ATAN05 ;
when "0110" => TAB_Z <= ATAN06 ;
when "0111" => TAB_Z <= ATAN07 ;
when "1000" => TAB_Z <= ATAN08 ;
when "1001" => TAB_Z <= ATAN09 ;
when "1010" => TAB_Z <= ATAN10 ;
when "1011" => TAB_Z <= ATAN11 ;
when "1100" => TAB_Z <= ATAN12 ;
when "1101" => TAB_Z <= ATAN13 ;
when "1110" => TAB_Z <= ATAN14 ;
when "1111" => TAB_Z <= ATAN15 ;
when others => TAB_Z <= VAL0 ;
end case ;
end process ;
-----------------------------------------------------------
-- Calculate --
-----------------------------------------------------------
CALC_X : process( CLK, XRST )
begin
if( XRST='0') then
REG_X <= (others=>'0') ;
elsif( CLK'event and CLK='1' ) then
if( ENABLE='1' ) then
-- Initial Value
if( INIT_LOAD = '1' ) then
if( IN_MODE='1' ) then
-- Atan Mode
REG_X <= IN_X ;
else
-- Sin/Cos Mode
REG_X <= VALX ;
end if ;
elsif( NOW_CONVERT='1' ) then
if( ADD_SUB='1' ) then
REG_X <= REG_X + DY ;
else
REG_X <= REG_X - DY ;
end if ;
end if ;
end if ;
end if ;
end process ;
CALC_Y : process( CLK, XRST )
begin
if( XRST='0') then
REG_Y <= (others=>'0') ;
elsif( CLK'event and CLK='1' ) then
if( ENABLE='1' ) then
-- Initial Value
if( INIT_LOAD = '1' ) then
if( IN_MODE='1' ) then
-- Atan Mode
REG_Y <= IN_Y ;
else
-- Sin/Cos Mode
REG_Y <= VAL0 ;
end if ;
elsif( NOW_CONVERT='1' ) then
if( ADD_SUB='1' ) then
REG_Y <= REG_Y - DX ;
else
REG_Y <= REG_Y + DX ;
end if ;
end if ;
end if ;
end if ;
end process ;
CALC_Z : process( CLK, XRST )
begin
if( XRST='0') then
REG_Z <= (others=>'0') ;
elsif( CLK'event and CLK='1' ) then
if( ENABLE='1' ) then
-- Initial Value
if( INIT_LOAD = '1' ) then
if( IN_MODE='1' ) then
-- Atan Mode
REG_Z <= VAL0 ;
else
-- Sin/Cos Mode
REG_Z <= IN_ANGLE ;
end if ;
elsif( NOW_CONVERT='1' ) then
if( ADD_SUB='1' ) then
REG_Z <= REG_Z + TAB_Z ;
else
REG_Z <= REG_Z - TAB_Z ;
end if ;
end if ;
end if ;
end if ;
end process ;
OUT_FINISH <= not NOW_CONVERT ;
OUT_X <= REG_X ;
OUT_Y <= REG_Y ;
OUT_Z <= REG_Z ;
end RTL ;
------------------------------------------------------------------------
-- End of File --
------------------------------------------------------------------------
|
//-------------------------------------------------------------------
//
// This file is automatically generated by VHDL to Verilog Translator.
// Ver.1.08 Build Mar.6.2004
// www.sugawara-systems.com
// tech-support@sugawara-systems.com
// See Original Copyright Notice for property of the file .( somewhere in this file.)
//
//--------------------------------------------------------------------
//----------------------------------------------------------------------
// Title CORDIC calculater sin(x), cos(x), atan(y/x) --
// File CORDIC.vhd --
// Entity CORDIC --
// rev date coded contents --
// 001 99/01/06 ueno Make Original --
//----------------------------------------------------------------------
`timescale 1ns/1ns
`define ns 1
`define us (1000*`ns)
`define ms (1000*`us)
`define sec (1000*`ms)
module cordic ( in_x, in_y, in_angle, in_start, in_mode, clk, enable, xrst, out_finish, out_x, out_y, out_z );
input [15:0] in_x ;
input [15:0] in_y ;
input [15:0] in_angle ;
input in_start;
input in_mode;
input clk;
input enable;
input xrst;
output out_finish;
output [15:0] out_x ;
output [15:0] out_y ;
output [15:0] out_z ;
parameter [15:0] val0=16'b0000000000000000;
parameter [15:0] valx=16'b0010011011011101;
parameter [15:0] atan00=16'b0011001001000100;
parameter [15:0] atan01=16'b0001110110101100;
parameter [15:0] atan02=16'b0000111110101110;
parameter [15:0] atan03=16'b0000011111110101;
parameter [15:0] atan04=16'b0000001111111111;
parameter [15:0] atan05=16'b0000001000000000;
parameter [15:0] atan06=16'b0000000100000000;
parameter [15:0] atan07=16'b0000000010000000;
parameter [15:0] atan08=16'b0000000001000000;
parameter [15:0] atan09=16'b0000000000100000;
parameter [15:0] atan10=16'b0000000000010000;
parameter [15:0] atan11=16'b0000000000001000;
parameter [15:0] atan12=16'b0000000000000100;
parameter [15:0] atan13=16'b0000000000000010;
parameter [15:0] atan14=16'b0000000000000001;
parameter [15:0] atan15=16'b0000000000000000;
reg [15:0] reg_x;
reg [15:0] reg_y;
reg [15:0] reg_z;
reg [3:0] reg_j;
reg [15:0] ax;
reg [15:0] bx;
reg [15:0] cx;
reg [15:0] dx;
reg [15:0] ay;
reg [15:0] by;
reg [15:0] cy;
reg [15:0] dy;
reg [15:0] tab_z;
reg init_load;
reg now_convert;
wire add_sub;
wire out_finish;
wire [15:0] out_x;
wire [15:0] out_y;
wire [15:0] out_z;
always @ (posedge clk or negedge xrst ) begin
if ((xrst === 1'b0))
init_load <= 1'b0;
else
begin
if ((enable === 1'b1))
begin
if ((((in_start === 1'b1) & (init_load === 1'b0)) & (now_convert === 1'b0)))
init_load <= 1'b1;
else
init_load <= 1'b0;
end
end
end //always
always @ (posedge clk or negedge xrst ) begin
if ((xrst === 1'b0))
now_convert <= 1'b0;
else
begin
if ((enable === 1'b1))
begin
if ((init_load === 1'b1))
now_convert <= 1'b1;
else if ((reg_j === 4'b1111))
now_convert <= 1'b0;
end
end
end //always
always @ (posedge clk or negedge xrst ) begin
if ((xrst === 1'b0))
reg_j <= 4'b0000;
else
begin
if ((enable === 1'b1))
begin
if ((now_convert === 1'b1))
reg_j <= (reg_j + 1);
end
end
end //always
assign {add_sub}=(in_mode === 1'b1) ?
~ (reg_y[15])
: reg_z[15];
always @ (reg_x or reg_j ) begin
if ((reg_j[3] === 1'b1))
ax <= {{{{{{{{reg_x[15],reg_x[15]},reg_x[15]},reg_x[15]},reg_x[15]},reg_x[15]},reg_x[15]},reg_x[15]},reg_x[15:8]};
else
ax <= reg_x;
end //always
always @ (ax or reg_j ) begin
if ((reg_j[2] === 1'b1))
bx <= {{{{ax[15],ax[15]},ax[15]},ax[15]},ax[15:4]};
else
bx <= ax;
end //always
always @ (bx or reg_j ) begin
if ((reg_j[1] === 1'b1))
cx <= {{bx[15],bx[15]},bx[15:2]};
else
cx <= bx;
end //always
always @ (cx or reg_j ) begin
if ((reg_j[0] === 1'b1))
dx <= {cx[15],cx[15:1]};
else
dx <= cx;
end //always
always @ (reg_y or reg_j ) begin
if ((reg_j[3] === 1'b1))
ay <= {{{{{{{{reg_y[15],reg_y[15]},reg_y[15]},reg_y[15]},reg_y[15]},reg_y[15]},reg_y[15]},reg_y[15]},reg_y[15:8]};
else
ay <= reg_y;
end //always
always @ (ay or reg_j ) begin
if ((reg_j[2] === 1'b1))
by <= {{{{ay[15],ay[15]},ay[15]},ay[15]},ay[15:4]};
else
by <= ay;
end //always
always @ (by or reg_j ) begin
if ((reg_j[1] === 1'b1))
cy <= {{by[15],by[15]},by[15:2]};
else
cy <= by;
end //always
always @ (cy or reg_j ) begin
if ((reg_j[0] === 1'b1))
dy <= {cy[15],cy[15:1]};
else
dy <= cy;
end //always
always @ (reg_j ) begin
case (reg_j)
4'b0000 :
tab_z <= 16'b0011001001000100;
4'b0001 :
tab_z <= 16'b0001110110101100;
4'b0010 :
tab_z <= 16'b0000111110101110;
4'b0011 :
tab_z <= 16'b0000011111110101;
4'b0100 :
tab_z <= 16'b0000001111111111;
4'b0101 :
tab_z <= 16'b0000001000000000;
4'b0110 :
tab_z <= 16'b0000000100000000;
4'b0111 :
tab_z <= 16'b0000000010000000;
4'b1000 :
tab_z <= 16'b0000000001000000;
4'b1001 :
tab_z <= 16'b0000000000100000;
4'b1010 :
tab_z <= 16'b0000000000010000;
4'b1011 :
tab_z <= 16'b0000000000001000;
4'b1100 :
tab_z <= 16'b0000000000000100;
4'b1101 :
tab_z <= 16'b0000000000000010;
4'b1110 :
tab_z <= 16'b0000000000000001;
4'b1111 :
tab_z <= 16'b0000000000000000;
default :
tab_z <= 16'b0000000000000000;
endcase
end //always
always @ (posedge clk or negedge xrst ) begin
if ((xrst === 1'b0))
reg_x <= {(15-0+1- 0){1'b0}};
else
begin
if ((enable === 1'b1))
begin
if ((init_load === 1'b1))
begin
if ((in_mode === 1'b1))
reg_x <= in_x;
else
reg_x <= 16'b0010011011011101;
end
else if ((now_convert === 1'b1))
begin
if ((add_sub === 1'b1))
reg_x <= (reg_x + dy);
else
reg_x <= (reg_x - dy);
end
end
end
end //always
always @ (posedge clk or negedge xrst ) begin
if ((xrst === 1'b0))
reg_y <= {(15-0+1- 0){1'b0}};
else
begin
if ((enable === 1'b1))
begin
if ((init_load === 1'b1))
begin
if ((in_mode === 1'b1))
reg_y <= in_y;
else
reg_y <= 16'b0000000000000000;
end
else if ((now_convert === 1'b1))
begin
if ((add_sub === 1'b1))
reg_y <= (reg_y - dx);
else
reg_y <= (reg_y + dx);
end
end
end
end //always
always @ (posedge clk or negedge xrst ) begin
if ((xrst === 1'b0))
reg_z <= {(15-0+1- 0){1'b0}};
else
begin
if ((enable === 1'b1))
begin
if ((init_load === 1'b1))
begin
if ((in_mode === 1'b1))
reg_z <= 16'b0000000000000000;
else
reg_z <= in_angle;
end
else if ((now_convert === 1'b1))
begin
if ((add_sub === 1'b1))
reg_z <= (reg_z + tab_z);
else
reg_z <= (reg_z - tab_z);
end
end
end
end //always
assign {out_finish}=~ (now_convert);
assign {out_x}=reg_x;
assign {out_y}=reg_y;
assign {out_z}=reg_z;
endmodule
|
 |
 |
 |
 |
 |
 |
 |
 |
1.Plasma (most MIPS I (TM))
Overview
The Plasma CPU core supports all MIPS I(TM) user mode instructions with
only two exceptions, written in VHDL by Steve Rhoads-san.
The source code can be seen in opencores project..
Since source is written in VHDL, I translated it to Verilog using Veritak
Translator almost automatically.
Only two changes were necessary to run in Veritak Verilog Simulator.
However it is not sufficient to synthesize Xilinx/Altera. I needed
following works
Post Layout Simulation
It is best to use actual FPGA to ensure proper logic synthesis. However
, it is rather bigger for Xilinx starter kit which is only FPGA board I
have.( I made 32KB SRAM implementation in Plasma.!) So I did post layout
gate simulation for Xilinx and Altera. The same simulation result as RTL
simulation was obtained by Post Layout Gate simulation for both.
2. YACC (Yet Another CPU CPU - Yet Another most MIPS I (TM))
Overview
YACC (Yet Another CPU CPU) is MIPS I (TM) subset cpu written in native Verilog-2001
HDL. YACC has 5 pipeline and shows 110DMIPS in stratix2 with synthesized
allowable maximum clock of 165MHz. It is independent design of plasma ,although
YACC uses gcc-elf-mips tools provided by Steve Rhords, author of plasma (Most mips written in VHDL).
The core was developed by using Veritak Simulator, with post layout gate
simulation, and tested by actual FPGAs, using Xilinx spartan3 starter kit
and Cyclone by Altera,running 800 digits of pi calculation ,(255,223) Reed
Solomon Error Correction ,and Interactive calculator written by C language.
Aug.27.2005
Release Note
Added an example to implement new hardware block to YACC with test bench
Complete Xilinx Starter Kit's project : Calculator by using hyperterminal
Download Build Aug.27.2005 (20MB)
Aug.2.2005
Release Note
Added an example to implement new hardware block to YACC. (See
F.A.Q.8)
Dec.5.2005 Added newlib compilation example /cygwin binary compiler/some
c sources examples using soft-floating library This environment is not
compatible with previous release.Because using floating library requires
rather larger memory area (32KB) , while previous space was 16KB. This
means we can not use spartan3 starter kit in this time. We have to wait
release of spartan 3E kit for 32KB memory.Also it is noted c compiler now
becomes gcc-3.44.
Download Build Dec.5.2005 (40MB)
3.Analysis of CRC Generator (Generator of synthesizable CRC functions)
Overview| Veritak Project Name | Description | Remarks |
| *_no_save.prj | Project without waveform save | Save WaveformView is disabled due to too big history for entire simulation. as save all.. |
| *_trace_mode.prj | Project with trace mode. | You can use "Jump to Driver" function in WaveformView. |
| *_trace_mode2.prj | Project with trace mode2. | Generates tage file. |
| IP CORES | Veritak Project File Position | No of source lines | Simulation seconds/minutes/hours/ -Athlon64 3000+1GB Memory on W2K) |
Download(ZIP) | Remarks |
| AC97 | /ac97_ctrl/bench/verilog | 11K | 49min54sec | AC97(0.3MB) | ac97_no_save.prj |
| CAN | /can | 12K | 0min | CAN(0.2MB) | can.prj |
| ATA | /ata | 4K | 13min38sec | ATA(1MB) | Nov.22.2004 no_save_ata.prj |
| PCI | /pci/bench/verilog | 89K | 1.5h | PCI(14MB) | pci_no_save.prj |
| USB1.1 | /usb11 | 11K | 2min37sec | USB1.1(0.3MB) | Added `include to source code. usb11_no_save.prj |
| I2C | /i2c | 2K | 2sec | I2C(0.7MB) | i2c.prj |
| ETHERNET | /ethernet/ethernet | 45K | 4h | ETHERNET(2.6MB) | tb_ethernet_no_save.prj |
| AES | /aes_core | 2K | 13sec | AES(0.2MB) | aes.prj |
| DES | /des | 2K | 1sec | DES(0.5MB) | des_trace_mode.prj |
| GENERIC FIFO | /generic_fifos/generic_fifos/bench/verilog | 2K | 2h | GENERICFIFO(0.1MB) | fifo_no_save.prj |
| GPIO | /gpio/gpio | 4K | 41sec | GPIO(0.6MB) | gpio.prj |
| WB_DMA | /wb_dma | 15K | 46h | WB_DMA(1.5MB) | |
| WB_CONBUS | /wb_conbus | 4K | 6sec | WB_CONBUS(0.4MB) | conbus.prj |
| WB_CONMAX | /wb_conmax | 11K |
10min6sec | WB_CONMAX(0.2MB) |
